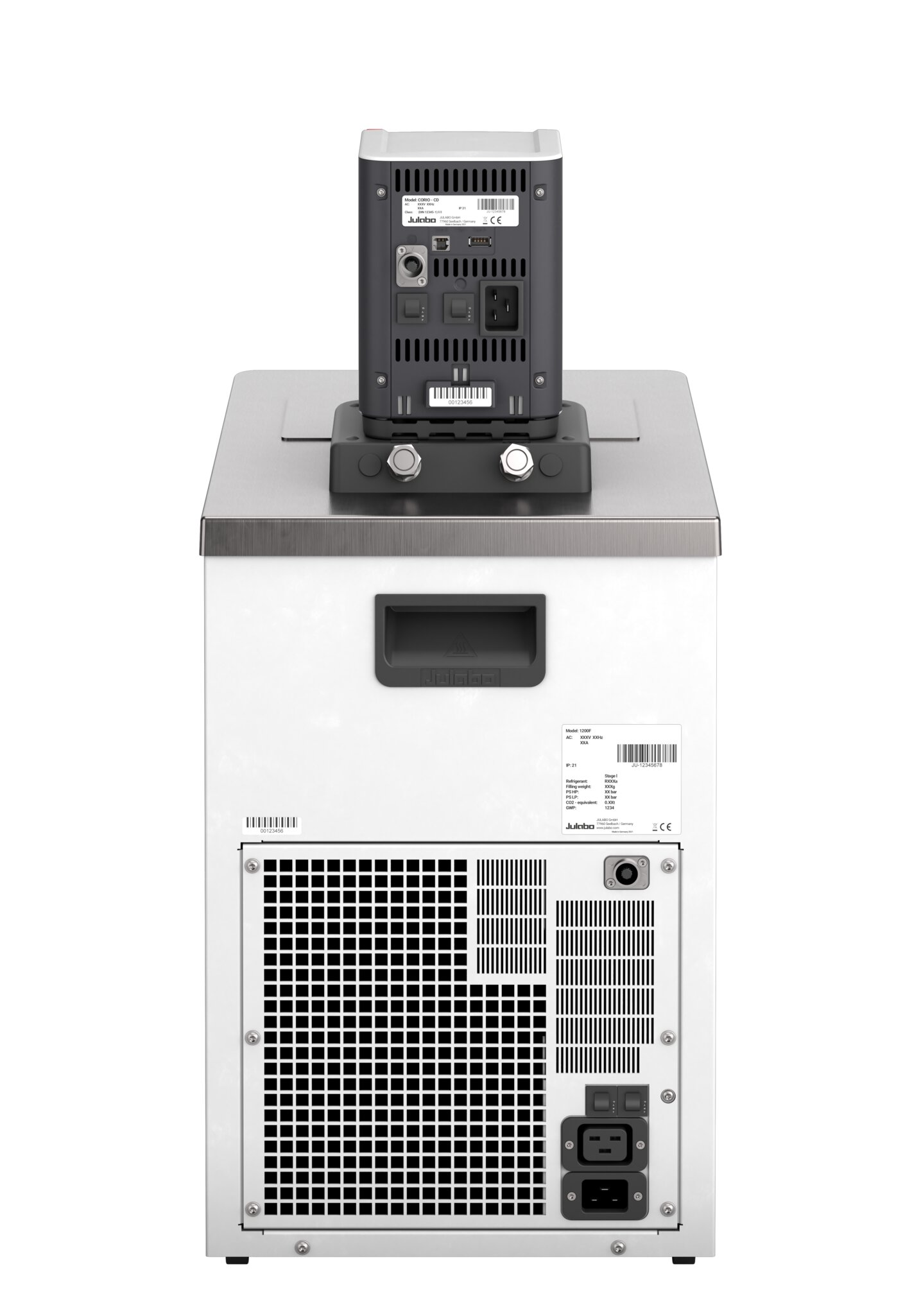

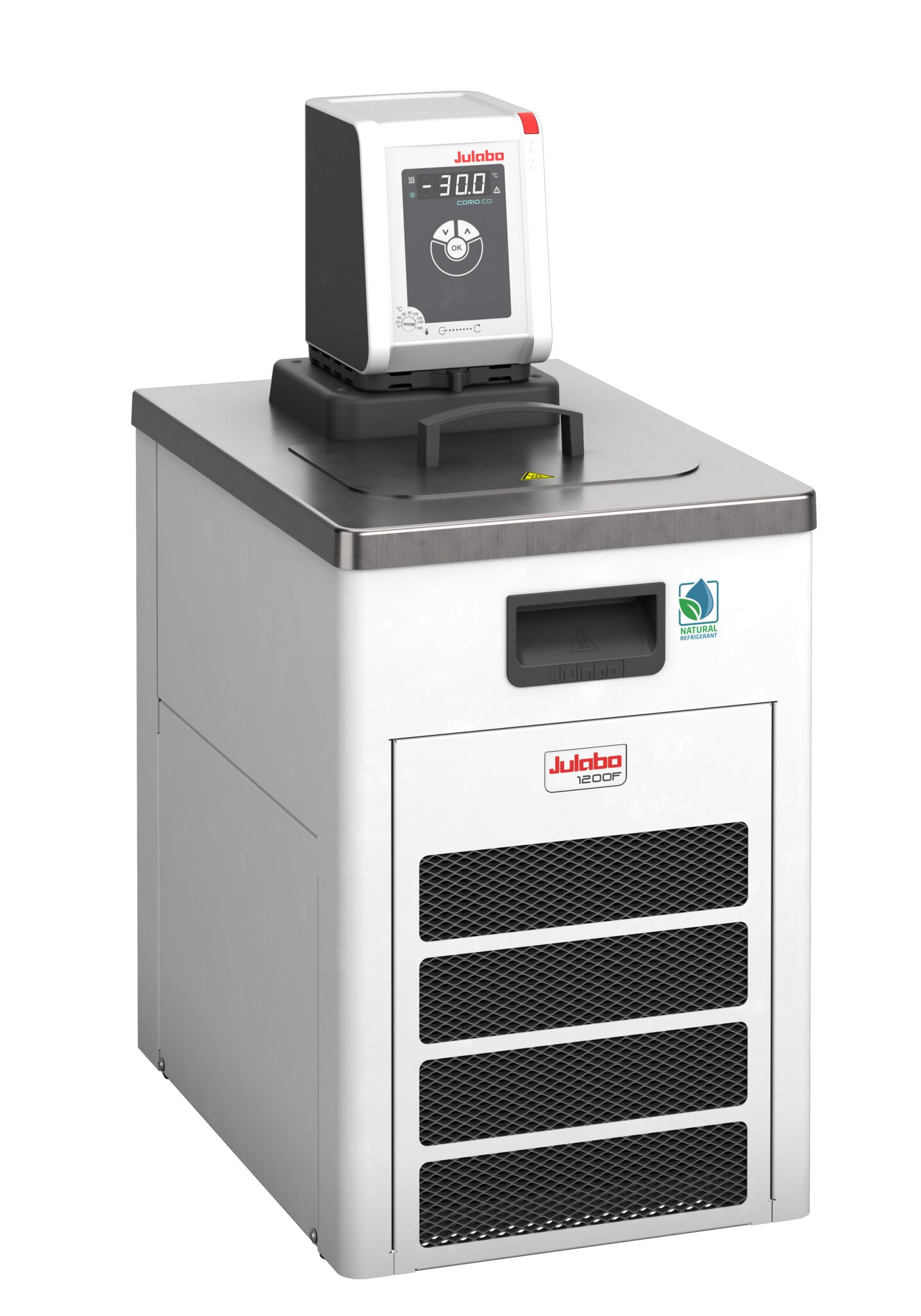

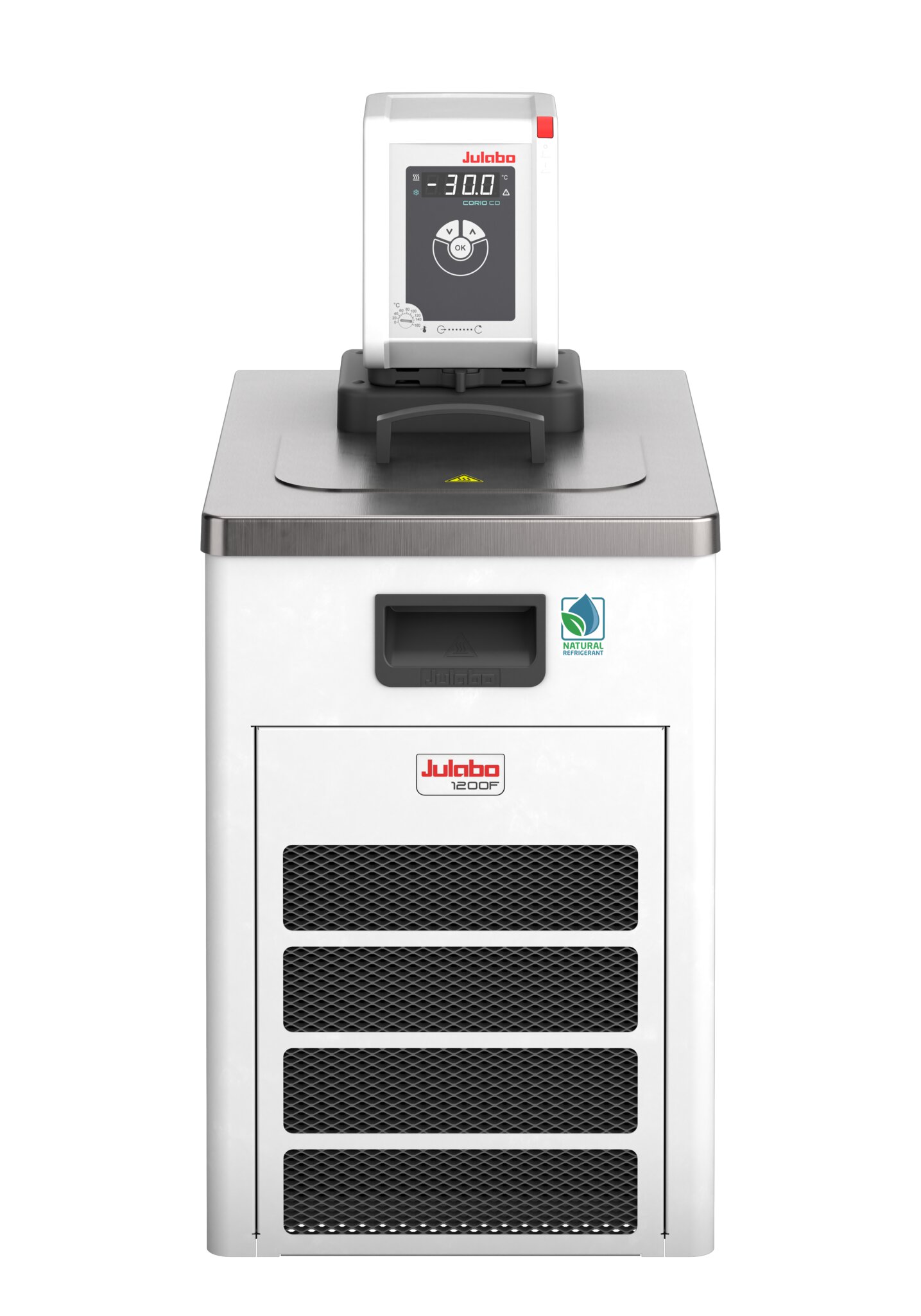

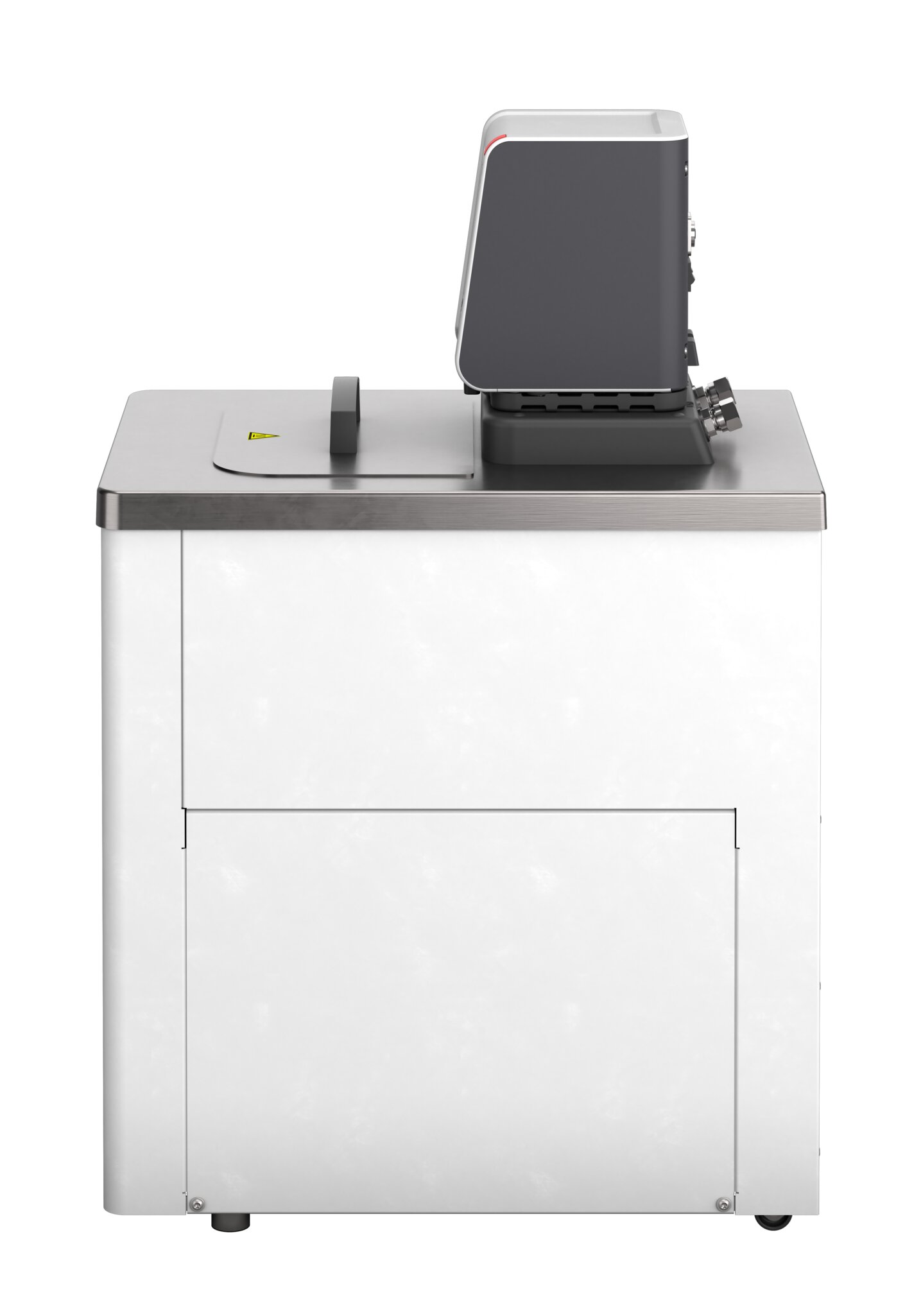

CORIO CD-1200F

Refrigerated Circulators

Part Number: 9012717

CORIO CD-1200F Benchtop Refrigerated / heating circulator. Range -40…+150 °C with 1 or 2 kW heating power and 1.25 kW cooling power at 20 °C. Centrifugal pump with 16 L/min flow and 4.8 PSI with diverter valve to adjust internal / external flow ratio.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

If NRTL/UL CSA is required, contact sales@julabo.us

$15,965.00 +

Quantity:
CORIO CD-1200F
CORIO CD-1200F
Part Number
9012717.N1.02
9012717.N1.13
Voltage Version
115V/60Hz
230V/60Hz
Heating & Cooling
Both
Both
Working Temp Range (°C)
-40...150
-40...150
PCF Pressure (psi)
4.8
4.8
PCF Rate (l/min)
16
16
$15,965.00
$15,965.00
CORIO CD-1200F
CORIO CD-1200F
Part Number
9012717.N1.02
9012717.N1.13
Working Temp Range (°C)
-40...150
-40...150
Heating Capacity (kW)
1
2
Cooling Capacity
°C
-40
-30
-20
0
20
kW
0.21
0.38
0.63
1.1
1.25
°C
-40
-30
-20
0
20
kW
0.21
0.38
0.63
1.1
1.25
Voltage Version
115V/60Hz
230V/60Hz
Power A
12A
11A
Plug Type
NEMA 5-20P
NEMA 6-20P
Pump Connection
M16x1 male
M16x1 male
PCF Pressure (psi)
4.8
4.8
PCF Rate (l/min)
16
16
Bath Fill Volume (L)
5...7.5
5...7.5
External Devices
Fluid Type
water, water/glycol
water, water/glycol
Heating & Cooling
Both
Both
Dimensions W x L x H (in)
13x18.5x27.6
13x18.5x27.6
Weight (lbs)
93
93
$15,965.00
$15,965.00
Request Quote
Request Quote
Request Quote
Request Quote
  • CORIO™ CD refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
  • The CORIO™ CD circulator incorporates easy change-over for control of fluid circulation internally or externally
  • USB connection for external PC control and data-logging
  • Bath lid and drain tap included
  • PID temperature control provides ±0.03 °C stability
  • Centrifugal pump capacity of 15 L/min with pressure to 5.1 psi
  • R1270 natural refrigerant with 85g charge. GWP = 2
  • Carbon dioxide equivalent = 0.00017 t
  • Stainless steel bath tank
  • Class III (FL) according to DIN 12876-1
  • Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
  • Adapters
    Adapter 8891043 M16x1 f to 1/2" tube
    Adapter M16x1 f to 1/2″ tube, US sourced $195.00 View
    Adapter 8891042 M16x1 f to 3/8" tube
    Adapter M16x1 f to 3/8″ tube, US sourced $195.00 View
    Adapter 8891041 M16x1 f to 1/4" tube
    Adapter M16x1 f to 1/4″ tube, US sourced $195.00 View
    M16 Nuts 8970490
    M16 Nuts $57.00 View
    M16 Twin adapter 8970473
    M16 Twin adapter $442.00 View
    Elbow fittings M16 8970448
    Elbow fittings M16 $579.00 View
    10mm Barbed fittings 8970447
    10mm Barbed fittings $72.00 View
    8mm Barbed fittings 8970446
    8mm Barbed fittings $62.00 View
    12mm Barbed fittings 8970445
    12mm Barbed fittings $62.00 View
    Adapter 8891610 M16x1 m to NPT 1/4" f
    Adapter M16x1 m to NPT 1/4″ f $168.00 View
    Adapter 8891609 M16x1 f to NPT 1/2" f
    Adapter M16x1 f to NPT 1/2″ f $256.00 View
    Adapter 8891608 M16x1 f to NPT 1/2" m
    Adapter M16x1 f to NPT 1/2″ m $210.00 View
    Adapter 8891607 M16x1 f to NPT 3/8" f
    Adapter M16x1 f to NPT 3/8″ f $262.00 View
    Adapter 8891606 M16x1 f to NPT 3/8" m
    Adapter M16x1 f to NPT 3/8″ m $188.00 View
    Adapter 8891605 M16x1 f to NPT 1/4" f
    Adapter M16x1 f to NPT 1/4″ f $185.00 View
    Adapter 8891604 M16x1 f to NPT 1/4" m
    Adapter M16x1 f to NPT 1/4″ m $99.00 View
    M16x1 m/m Adapter 8891243
    Adapter M16x1 m/m $76.00 View
    Elbows M16x1 8891242
    Elbows M16x1 $403.00 View
    Adapter 8891009 M16x1 m to 3/4" BSP f
    Adapter M16x1 m to 3/4″ BSP f $304.00 View
    Adapter 8891008 M16x1 m to 1/2" BSP f
    Adapter M16x1 m to 1/2″ BSP f $271.00 View
    Adapter 8890024 M16x1 f to M 16x1 f
    Adapter M16x1 f to M 16×1 f $177.00 View
  • Bath Covers
    Condensation Trap with Bath Lid for MAGIO 600F / 601F / 800F / 1000F & 1200F
    Condensation Trap with Bath Lid $2,949.00 View
    Lockable bath cover
    Lockable bath cover $2,352.00 View
    Large Lid Heat Exchanger
    Large Lid Heat Exchanger $1,139.00 View
  • Bath Fluids
    Thermal H350 5L
    Thermal C10 5L $1,596.00 View
    Thermal H350 5L
    Thermal C5 10L $2,114.00 View
    Thermal H350 5L
    Thermal EG 5L $259.00 View
    Thermal H350 5L
    Thermal EG 10L $465.00 View
    Thermal H350 5L
    Thermal C10 10L $3,170.00 View
    Thermal H350 5L
    Thermal C5 5L $1,064.00 View
  • Hoses & Tubing
    Icing protection/sleeve for pump connectors
    Icing protection/sleeve for pump connectors $184.00 View
    Tube clamps 1" 8970484
    Tube clamps 10/12mm $50.00 View
    Tube clamps 1" 8970484
    Tube clamps 8mm $52.00 View
    Insulation 8930413 23mm ID
    Insulation for tubing 12mm ID $51.00 View
    Insulation 8930410 for tubing 8/10mm ID
    Insulation for tubing 8/10mm ID $53.00 View
    Metal tubing 2m M16x1f
    Metal tubing 2m M16x1f $1,311.00 View
    Metal tubing 8930223 3m M16x1f
    Metal tubing 3m M16x1f $1,550.00 View
    Metal tubing 8930222 1.5m M16x1f
    Metal tubing 1.5m M16x1f $856.00 View
    Metal tubing 8930221 1m M16x1f
    Metal tubing 1m M16x1f $691.00 View
    Metal tubing 8930220 0.5m M16x1f
    Metal tubing 0.5m M16x1f $552.00 View
    PTFE tubing 12mm ID 8930142
    PTFE tubing 12mm ID $271.00 View
    PTFE tubing 8mm ID 8930140
    PTFE tubing 8mm ID $215.00 View
    Silicone tubing 12mm ID 8930122
    Silicone tubing 12mm ID $100.00 View
    Silicone tubing 12mm ID 8930122
    Silicone tubing 8mm ID $92.00 View
    CR tubing 6mm ID 8930006
    Viton tubing 12mm ID $230.00 View
    CR tubing 6mm ID 8930006
    Viton tubing 10mm ID $191.00 View
    CR tubing 6mm ID 8930006
    Viton tubing 8mm ID $173.00 View
    CR tubing 6mm ID 8930006
    CR-tubing 12mm ID $58.00 View
    CR tubing 6mm ID 8930006
    CR tubing 10mm ID $48.00 View
    CR tubing 6mm ID 8930006
    CR tubing 8mm ID $35.00 View
    CR tubing 6mm ID 8930006
    CR tubing 6mm ID $31.00 View
    Vacuum insulated metal tubing, 3m, M16x1f
    Vacuum insulated metal tubing, 3m, M16x1f $1,751.00 View
    Vacuum insulated metal tubing, 2m, M16x1f
    Vacuum insulated metal tubing, 2m, M16x1f $1,395.00 View
    Vacuum insulated metal tubing, 1.5m, M16x1f
    Vacuum insulated metal tubing, 1.5m, M16x1f $1,111.00 View
    Vacuum insulated metal tubing, 1m, M16x1f
    Vacuum insulated metal tubing, 1m, M16x1f $801.00 View
    Vacuum insulated metal tubing, 0.5m, M16x1f
    Vacuum insulated metal tubing, 0.5m, M16x1f $615.00 View
    Rubber tubing
    Viton tubing 6mm ID $118.00 View
  • Networking & Software
    USB Cable 9900110
    USB Cable $55.00 View
    EasyTemp Professional' control software 8901105
    EasyTemp Professional’ control software $1,805.00 View
  • Valves
    M16 Shut-off valve 8970457
    M16 Shut-off valve $586.00 View

CORIO CD-1200F Videos

Circulator Head Removal – CORIO & DYNEO

In this video, Electronics Service Team Leader, Nelson Hill will walk you through how to dismount a CORIO CD, CORIO CP, or DYNEO DD from a heated or refrigerated bath.

Updating Firmware & Configuration – CORIO CD

In this video, Nelson will demonstrate how to update the firmware and configuration on a CORIO CD circulator.
