MAGIO MX-1800F
We heat things up and cool them down.®

MAGIO MX-1800F

Refrigerated Circulators

Part Number: 9033751

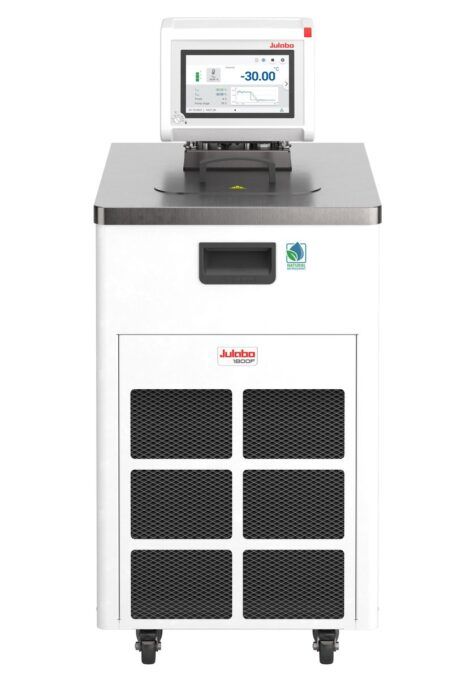

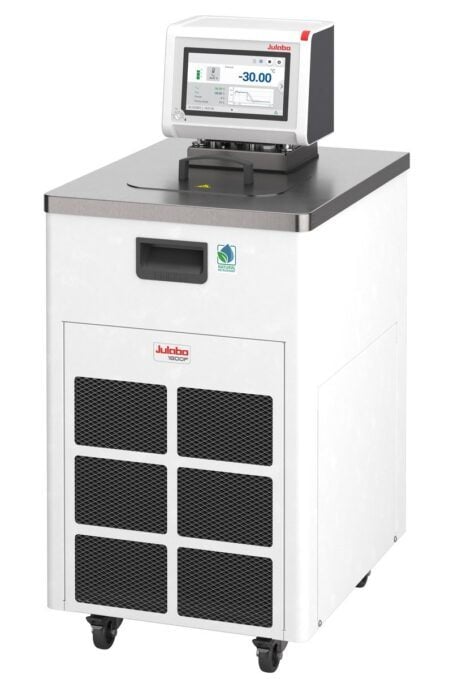

MAGIO MX-1800F Refrigerated / heating circulator. Range -50…+200 °C with 3 kW heating power and 1.8 kW cooling power at 20 °C. Adjustable pressure/suction centrifugal pump with 16…31 L/min flow and 3.5…13.3 PSI pressure. USB, Ethernet, RS232/RS485 Communication ports with option to add Analog module.
With locking casters. R1270 Natural Refrigerant.

If NRTL/UL CSA is required, contact sales@julabo.us

Quantity:
Part Number
9033751.N1.33
Voltage Version
208-230V/50-60Hz
Heating & Cooling
Both
Working Temp Range (°C)
-50...200
PCF Pressure (psi)
3.5...13.3
PCF Rate (l/min)
Part Number
9033751.N1.33
Working Temp Range (°C)
-50...200
Heating Capacity (kW)
3
Cooling Capacity
°C
-40
-30
-20
0
20
kW
0.3
0.47
0.77
1.57
1.87
Voltage Version
208-230V/50-60Hz
Power A
15A
Plug Type
NEMA 6-20P
Pump Connection
M16x1 male
PCF Pressure (psi)
3.5...13.3
PCF Rate (l/min)
Bath Fill Volume (L)
6.5...11
External Devices
Fluid Type
water, water/glycol
Heating & Cooling
Both
Dimensions W x L x H (in)
15.7x19.7x34
Weight (lbs)
135
Request Quote
Request Quote
  • Adapters
    Adapter M16x1 f to 1/2″ tube, US sourced $195.00 View
    Adapter M16x1 f to 3/8″ tube, US sourced $195.00 View
    Adapter M16x1 f to 1/4″ tube, US sourced $195.00 View
    M16 Nuts $57.00 View
    M16 Twin adapter $442.00 View
    Elbow fittings M16 $579.00 View
    10mm Barbed fittings $72.00 View
    8mm Barbed fittings $62.00 View
    12mm Barbed fittings $62.00 View
    Adapter M16x1 m to NPT 1/4″ f $168.00 View
    Adapter M16x1 f to NPT 1/2″ f $256.00 View
    Adapter M16x1 f to NPT 1/2″ m $210.00 View
    Adapter M16x1 f to NPT 3/8″ f $262.00 View
    Adapter M16x1 f to NPT 3/8″ m $188.00 View
    Adapter M16x1 f to NPT 1/4″ f $185.00 View
    Adapter M16x1 f to NPT 1/4″ m $99.00 View
    Adapter M16x1 m/m $76.00 View
    Elbows M16x1 $403.00 View
    Adapter M16x1 m to 3/4″ BSP f $304.00 View
    Adapter M16x1 m to 1/2″ BSP f $271.00 View
    Adapter M16x1 f to M 16×1 f $177.00 View
  • Bath Covers
    Condensation Trap with Bath Lid $2,949.00 View
    Lockable bath cover $2,352.00 View
    Large Lid Heat Exchanger $1,139.00 View
  • Bath Fluids
    Thermal C10 5L $1,596.00 View
    Thermal C5 10L $2,114.00 View
    Thermal C20S 5L $908.00 View
    Thermal C20S 10L $1,683.00 View
    Thermal EG 5L $259.00 View
    Thermal EG 10L $465.00 View
    Thermal C10 10L $3,170.00 View
    Thermal C5 5L $1,064.00 View
  • Boosters
    Booster Pump for PRESTO units $12,343.00 + View
    HST Booster heater, 6kW for MAGIO products $9,324.00 + View
  • Hoses & Tubing
    Icing protection/sleeve for pump connectors $184.00 View
    Tube clamps 10/12mm $50.00 View
    Tube clamps 8mm $52.00 View
    Insulation for tubing 12mm ID $51.00 View
    Insulation for tubing 8/10mm ID $53.00 View
    Metal tubing 2m M16x1f $1,311.00 View
    Metal tubing 3m M16x1f $1,550.00 View
    Metal tubing 1.5m M16x1f $856.00 View
    Metal tubing 1m M16x1f $691.00 View
    Metal tubing 0.5m M16x1f $552.00 View
    PTFE tubing 12mm ID $271.00 View
    PTFE tubing 8mm ID $215.00 View
    Silicone tubing 12mm ID $100.00 View
    Silicone tubing 8mm ID $92.00 View
    Viton tubing 12mm ID $230.00 View
    Viton tubing 10mm ID $191.00 View
    Viton tubing 8mm ID $173.00 View
    CR-tubing 12mm ID $58.00 View
    CR tubing 10mm ID $48.00 View
    CR tubing 8mm ID $35.00 View
    CR tubing 6mm ID $31.00 View
    Vacuum insulated metal tubing, 3m, M16x1f $1,751.00 View
    Vacuum insulated metal tubing, 2m, M16x1f $1,395.00 View
    Vacuum insulated metal tubing, 1.5m, M16x1f $1,111.00 View
    Vacuum insulated metal tubing, 1m, M16x1f $801.00 View
    Vacuum insulated metal tubing, 0.5m, M16x1f $615.00 View
    Viton tubing 6mm ID $118.00 View
  • Networking & Software
    RS485 Interface $3,111.00 View
    Profibus DP Interface $3,111.00 View
    USB Cable $55.00 View
    Electronic module with analog connections for MAGIO $953.00 View
    RS232 interface cable 5m $234.00 View
    RS232 interface cable $219.00 View
    EasyTemp Professional’ control software $1,805.00 View
    USB to Serial RS-232 DB9 Adapter Cable $276.00 View
    ProfiNet Interface for JULABO devices with RS232 $4,492.00 View
    EtherCAT Interface $4,492.00 View
  • Plugs
    Stakei Plug $50.00 View
    REG EPROG-plug 6 pole $50.00 View
    Standby-plug 3 pole $50.00 View
    Alarm plug 5 pole $50.00 View
  • Sensors
    Pt100 Extension cable $620.00 View
    M16 in-line Pt100 sensor $1,161.00 View
    20mm SS Pt100 sensor $1,052.00 View
    8″ PTFE Pt100 sensor $935.00 View
    8″ SS Pt100 sensor $575.00 View
    12″ PTFE Pt100 sensor $990.00 View
    12″ SS Pt100 sensor $608.00 View
    48″ PTFE Pt100 sensor $1,444.00 View
    48″ SS Pt100 sensor $1,295.00 View
    36″ PTFE Pt100 sensor $1,297.00 View
    36″ SS Pt100 sensor $1,003.00 View
    24″ PTFE Pt100 sensor $1,007.00 View
    24″ SS Pt100 sensor $909.00 View
    18″ PTFE Pt100 sensor $998.00 View
    18″ SS Pt100 sensor $759.00 View
  • Valves
    M16 Shut-off valve $586.00 View

MAGIO MX-1800F Videos

Circulator Head Removal – MAGIO

In this video, Electronics Service Team Leader, Nelson Hill will walk you through how to dismount a MAGIO MS or MX from a heated or refrigerated bath.

Installing Analog Module – MAGIO

In this video, Electronics Service Team Leader, Nelson Hill, walks us through how to install an analog module on a MAGIO.
