VALEGRO 1503H

Recirculating Chillers

Part Number: 9612153

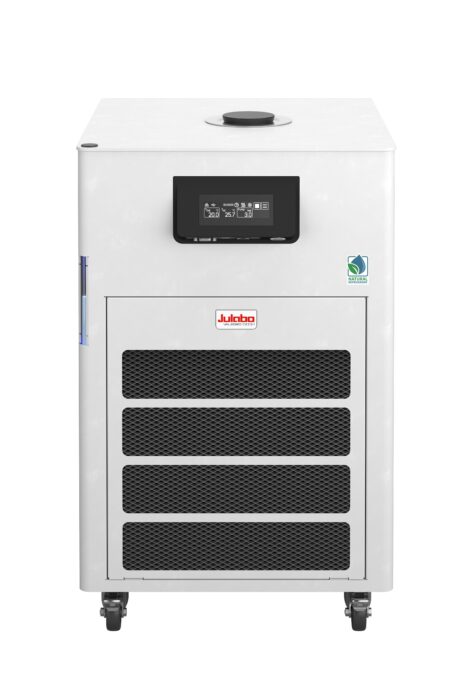

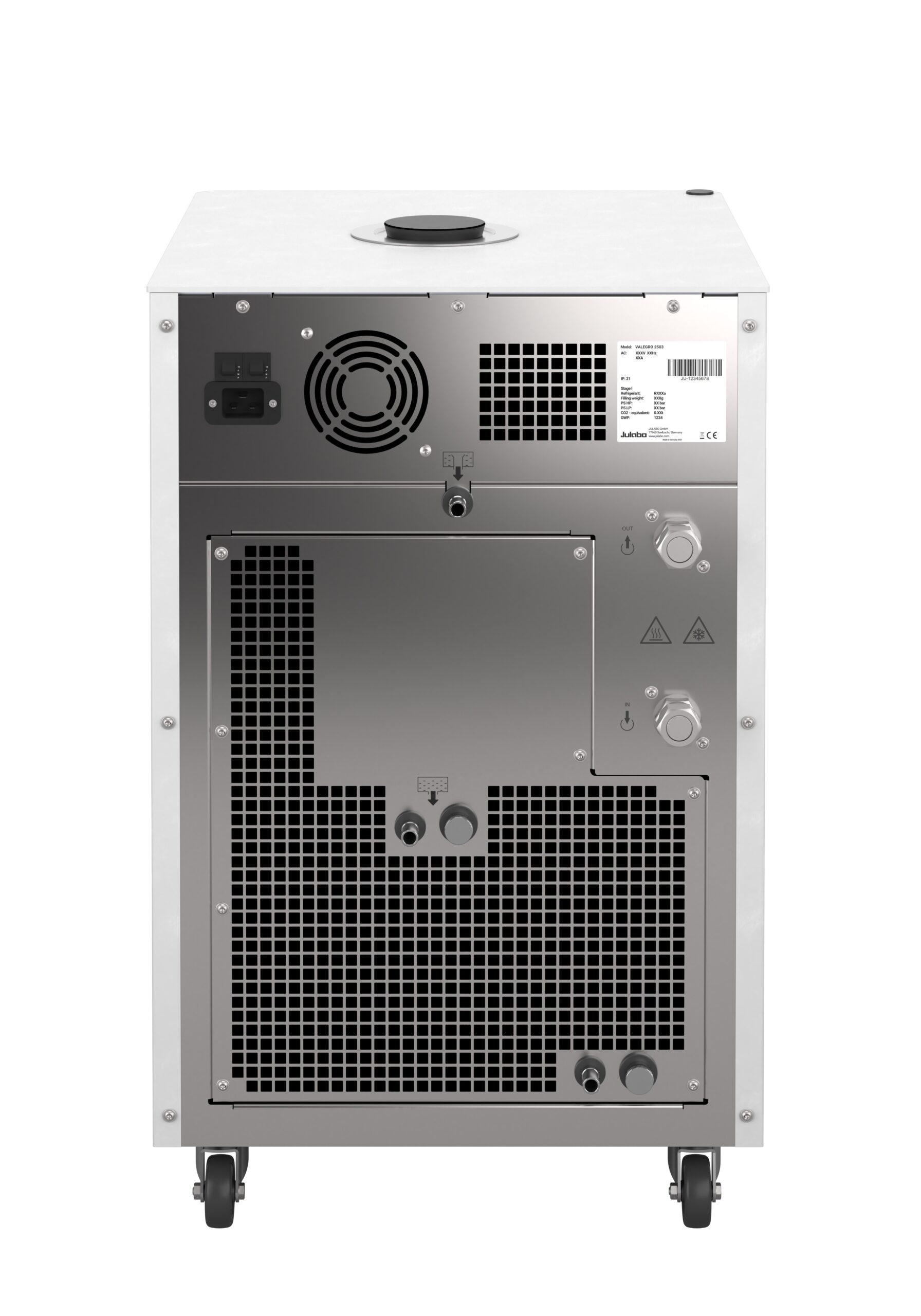

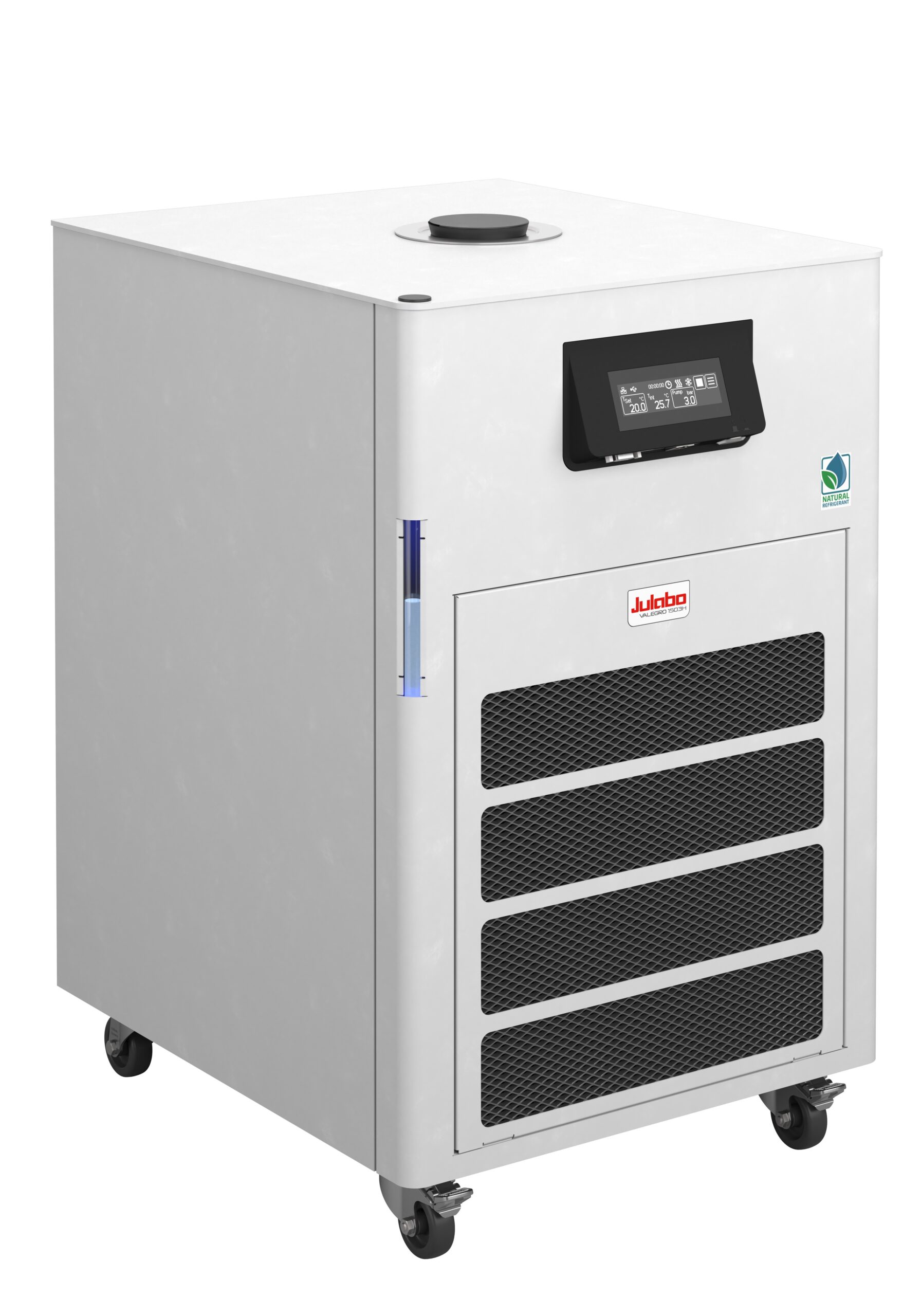

VALEGRO 1503H compact recirculating chiller with -20…+85 °C operating range with 2kW heating power (at 230V) and 1.5kW cooling power at 20 °C. The integrated pump generates a pump pressure up to 50.8 psi and 40 L/min with infinite adjustability to fit your application needs. Integrated pressure sensor enables pump control via pressure setting. Cooling via environmentally friendly natural refrigerant. OLED touch screen user interface with intuitive menu operation. Includes RS232 and USB-C interfaces for external communication with an optioni for Ethernet (part number 30004147). M24x1.5 male threaded pump connections with 12 mm hose barbs included. Locking casters.

Included with each unit: 2 barbed fittings for tubing of 12 mm inner dia. (pump connections M24x1.5 male)

If NRTL/UL CSA is required, contact sales@julabo.us

Quantity:
Part Number
9612153.30007011
Voltage Version
208-230V/50-60Hz
Refrigerant
R290
Heating & Cooling
Both
Working Temp Range (°C)
-20...85
PCF Pressure (psi)
7.3...50.8
PCF Rate (l/min)
15...40
Part Number
9612153.30007011
Working Temp Range (°C)
-20...85
Heating Capacity (kW)
2
Cooling Capacity
°C
-20
-10
0
20
kW
0.35
0.7
1
1.5
Voltage Version
208-230V/50-60Hz
Power A
Plug Type
NEMA 6-20P
Pump Connection
M24x1.5 male
PCF Pressure (psi)
7.3...50.8
PCF Rate (l/min)
15...40
Bath Fill Volume (L)
3...8
External Devices
Fluid Type
Water, Water/Glycol
Heating & Cooling
Both
Dimensions W x L x H (in)
16.9 x 22 x 27.2
Weight (lbs)
133.5
Refrigerant
R290
Request Quote
Request Quote
  • Climate friendly Natural Refrigerant
  • OLED touchscreen user interface
  • USB-C and RS232 communication ports
  • Ethernet option
  • Illuminated level indicator
  • Adjustable pump to regulate flow / pressure
  • Adapters
    Elbow fittings M24x1.5 f/m $528.00 View
    Adapter M24x1.5 f to NPT 3/4″ m $373.00 View
    Adapter M24x1.5 f to NPT 1/2″ m $373.00 View
    Adapter M24x1.5 f to NPT 3/4″ f $468.00 View
    Adapter M24x1.5 f to NPT 1/2″ f $373.00 View
    Adapter M24x1.5 f to M16x1 m $301.00 View
    Quad distributing adapter M24x1.5 f to 4x M24x1.5 m $1,299.00 View
    Twin distributing adapter M24x1.5 f to 2x M24x1.5 m $686.00 View
    Quad distributing adapter M24x1.5f to 4x M24x1.5m $1,965.00 View
    Twin distributing adapter M24x1.f to 2x M25x1.5 m $1,030.00 View
    Adapter M24x1.5 f to M30x1.5 f $633.00 View
    Adapter M24x1.5 f to M30x1.5 m $517.00 View
    Adapter M24x1.5 f to M24x1.5 f $510.00 View
    Adapter M24x1.5 f to tube 1″ $469.00 View
    Adapter M24x1.5 f to tube 1/2″ $367.00 View
    Adapter M24x1.5 to tube 3/8″ $305.00 View
    Adapter M24x1.5 f to tube 1/4″ $305.00 View
    Adapters M24 x 1.5 f to NPT 1″ m $475.00 View
    Adapter M24x1.5 f to NPT 3/8″ m $334.00 View
    Adapter M24x1.5 f to NPT 1/4″ m $320.00 View
    Adapter M24x1.5 f to NPT 1″ f $611.00 View
    Adapter M24x1.5 f to NPT 3/8″ f $476.00 View
    Adapter M24x1.5 f to NPT 1/4″ f $342.00 View
  • Bath Fluids
    Thermal EG-Al 5 gal $744.00 View
    Thermal EG 5L $259.00 View
    Thermal EG 10L $465.00 View
  • Certificates
    Manufacturer’s Certificate Category 2 $403.00 View
  • Hoses & Tubing
    Tube clamps 12mm $48.00 View
    Insulation 23mm ID $62.00 View
    Reinforced tubing 12mm ID $134.55 View
  • Networking & Software
    RS485 Interface $3,111.00 View
    RS232 interface cable 5m $234.00 View
    RS232 interface cable $219.00 View
  • Valves
    M24 Shut-off valve $723.00 View

VALEGRO 1503H Videos

Connecting to EasyTEMP Software – RS232 – VALEGRO

In this video, Nelson Hill, Electronics Service Team Leader, demonstrates how to connect your VALEGRO recirculating chiller to EasyTEMP using the RS232 interface.

Connecting to EasyTEMP Software – USB-C – VALEGRO

In this video, Nelson Hill, Electronics Service Team Leader, demonstrates how to connect your VALEGRO recirculating chiller to EasyTEMP using the USB-C interface.
