VALEGRO 801H

Recirculating Chillers

Part Number: 9612081

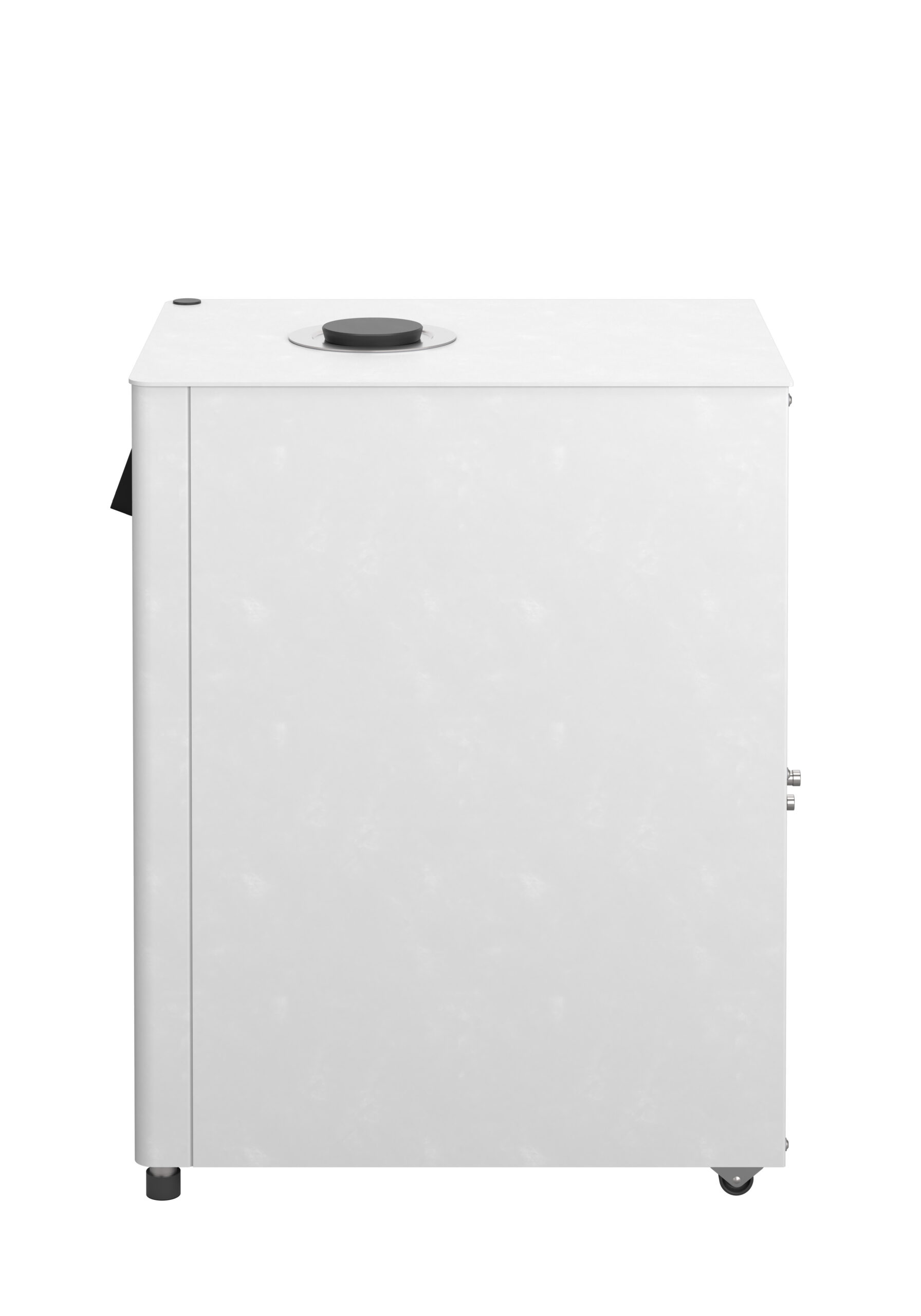

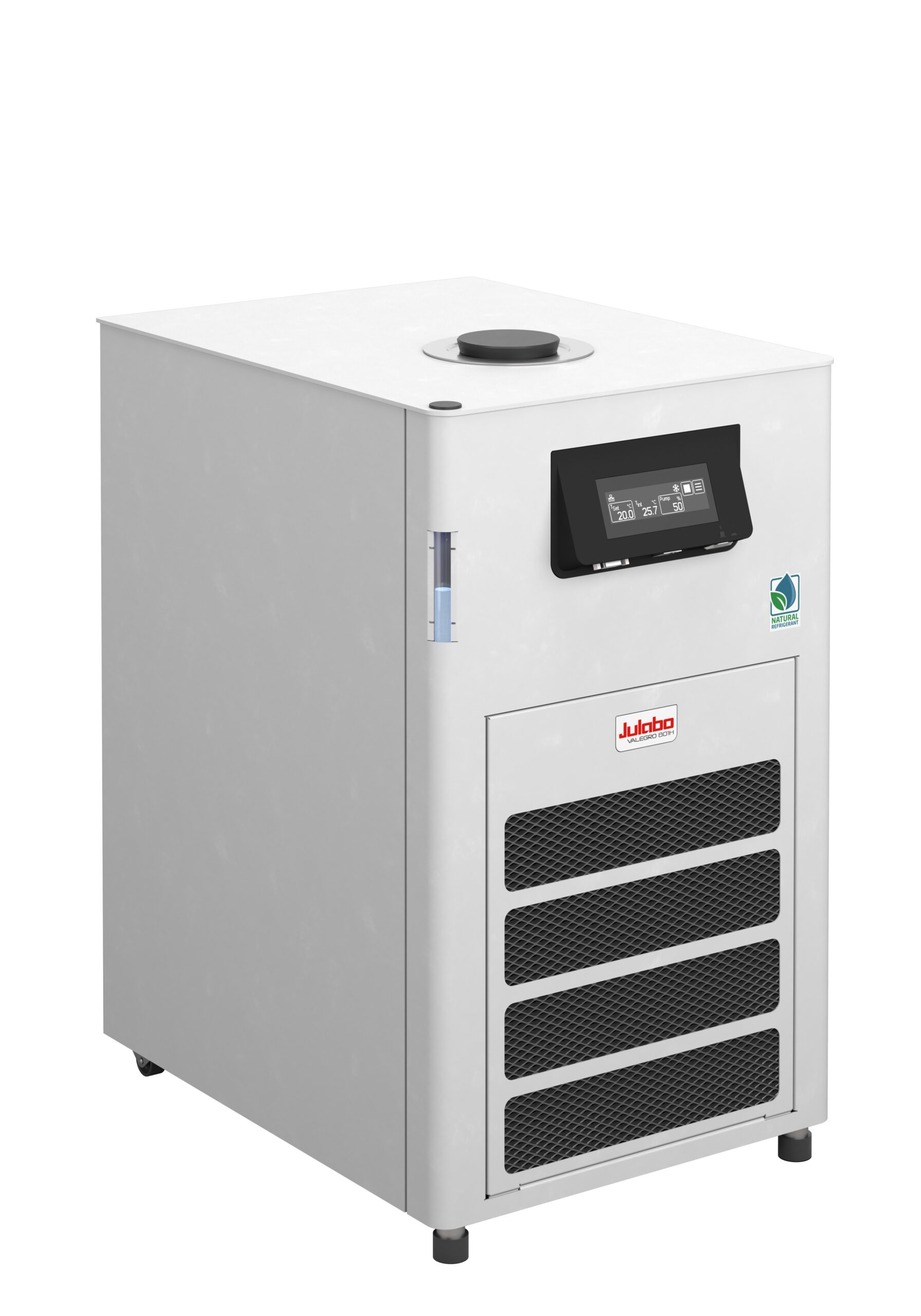

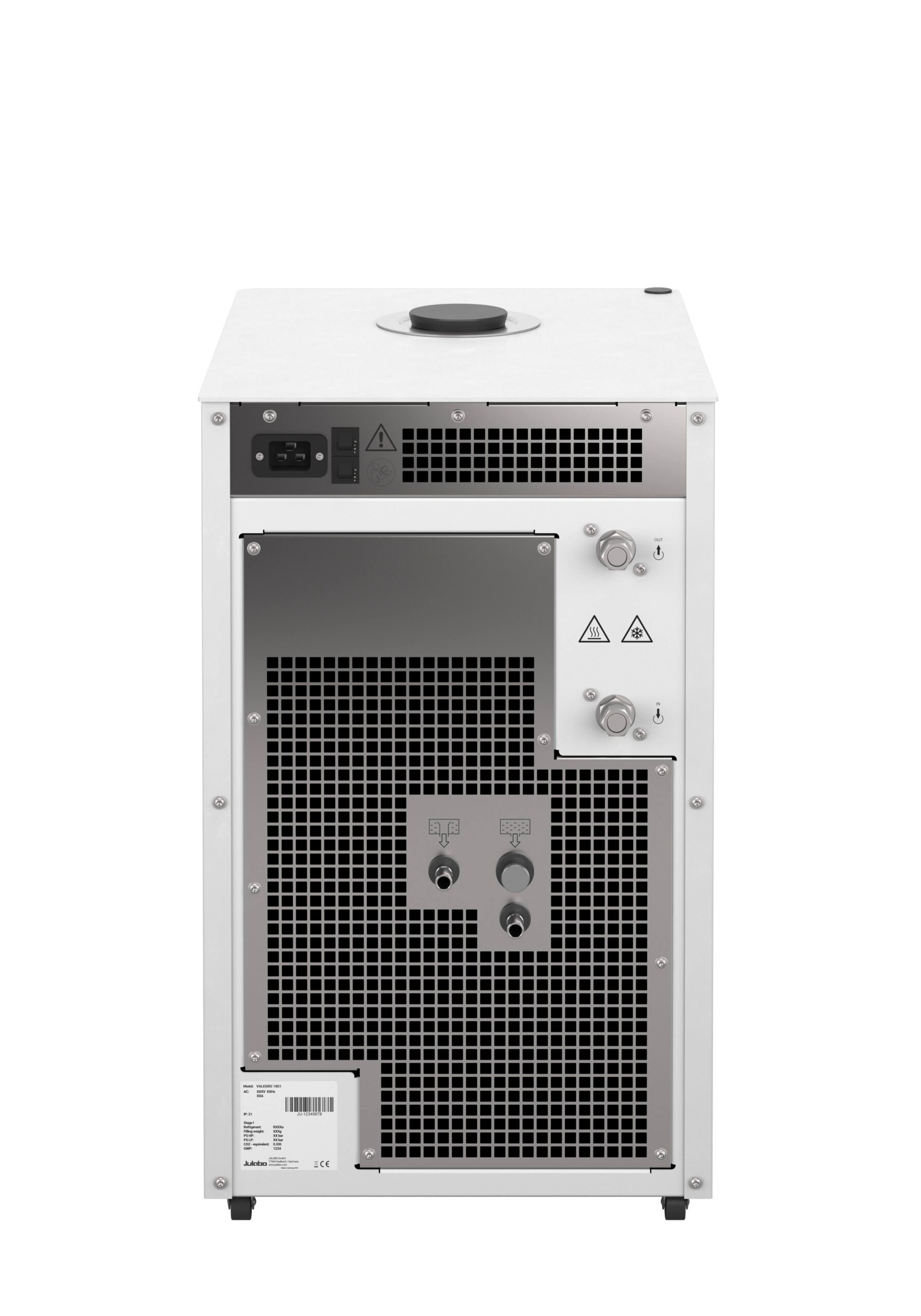

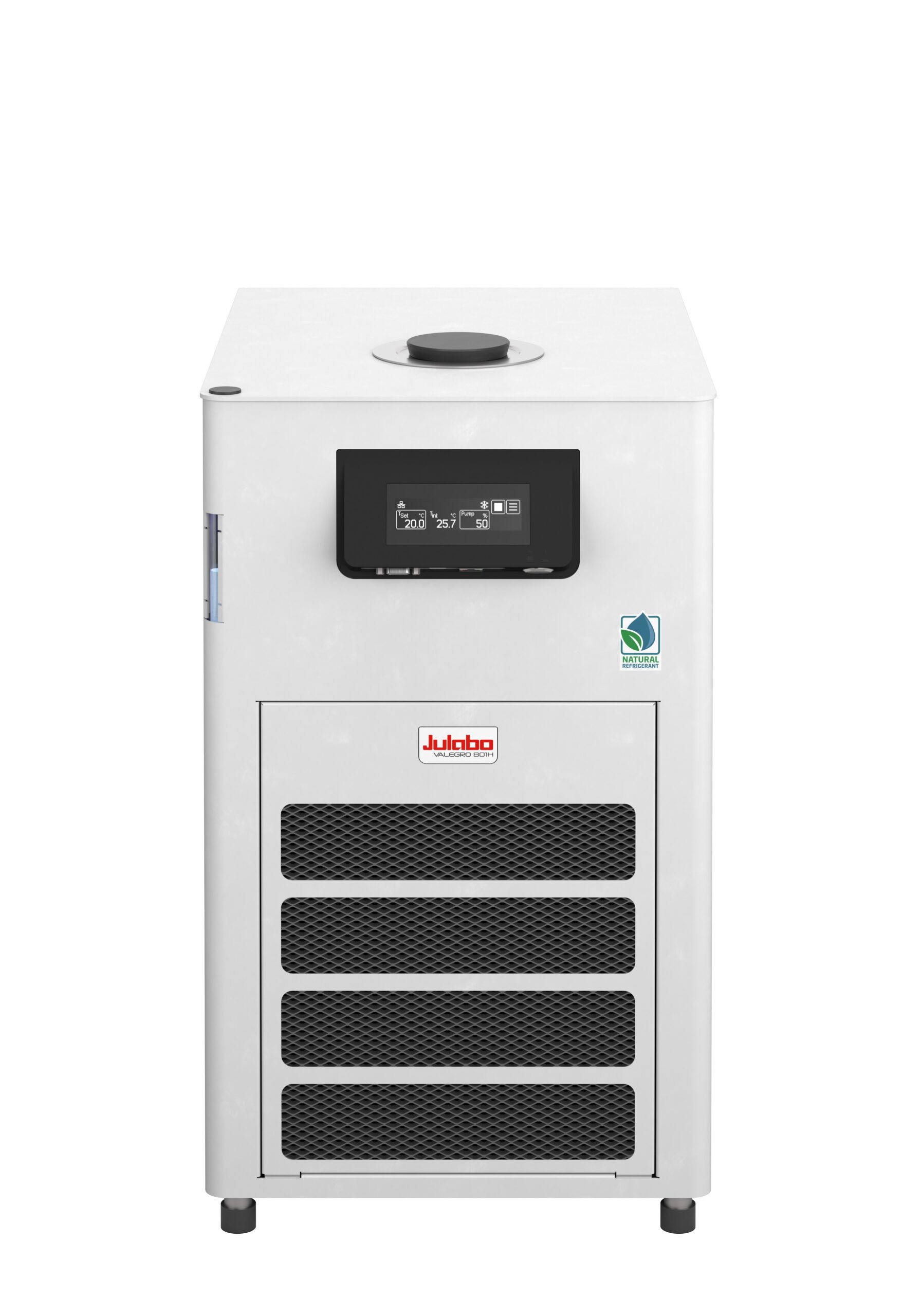

VALEGRO 801H compact recirculating chiller with -20…+85 °C operating range with 1kW heating power and 800W cooling power at 20 °C. The integrated pump generates a pump pressure up to 16 psi and 23 L/min with infinite adjustability to fit your application needs. Cooling via environmentally friendly natural refrigerant. OLED touch screen user interface with intuitive menu operation. Includes RS232 and USB-C interfaces for external communication with an optioni for Ethernet (part number 30004147). M16x1 male threaded pump connections with 8 and 12 mm hose barbs included.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

If NRTL/UL CSA is required, contact sales@julabo.us

$15,312.00 +

Quantity:
Part Number
9612081.30005651
Voltage Version
115V/60Hz
Refrigerant
R290
Heating & Cooling
Both
Working Temp Range (°C)
-20...85
PCF Pressure (psi)
7.3...16
PCF Rate (l/min)
15...23
$15,312.00
Part Number
9612081.30005651
Working Temp Range (°C)
-20...85
Heating Capacity (kW)
1
Cooling Capacity
°C
-20
-10
0
20
kW
0.25
0.45
0.65
0.8
Voltage Version
115V/60Hz
Power A
Plug Type
NEMA 5-15P
Pump Connection
M16x1 male
PCF Pressure (psi)
7.3...16
PCF Rate (l/min)
15...23
Bath Fill Volume (L)
4...7
External Devices
Fluid Type
Water, Water/Glycol
Heating & Cooling
Both
Dimensions W x L x H (in)
14.4 x 20.7 x 24
Weight (lbs)
95
Refrigerant
R290
$15,312.00
Add to Cart
Add to Cart
  • Climate friendly Natural Refrigerant
  • OLED touchscreen user interface
  • USB-C and RS232 communication ports
  • Ethernet option
  • Illuminated level indicator
  • Adjustable pump to regulate flow / pressure
  • Adapters
    Adapter M16x1 f to 1/2″ tube, US sourced $195.00 View
    Adapter M16x1 f to 3/8″ tube, US sourced $195.00 View
    Adapter M16x1 f to 1/4″ tube, US sourced $195.00 View
    M16 Twin adapter $442.00 View
    T-adapter 10mm $157.00 View
    Elbow fittings M16 $579.00 View
    Adapter M16x1 f to NPT 1/2″ f $256.00 View
    Adapter M16x1 f to NPT 1/2″ m $210.00 View
    Adapter M16x1 f to NPT 3/8″ f $262.00 View
    Adapter M16x1 f to NPT 3/8″ m $188.00 View
    Adapter M16x1 f to NPT 1/4″ f $185.00 View
    Adapter M16x1 f to NPT 1/4″ m $99.00 View
    Adapter M16x1 f to M 16×1 f $177.00 View
  • Bath Fluids
    Thermal EG-Al 5 gal $744.00 View
    Thermal EG 5L $259.00 View
    Thermal EG 10L $465.00 View
  • Certificates
    Manufacturer’s Certificate Category 2 $403.00 View
  • Hoses & Tubing
    Icing protection/sleeve for pump connectors $184.00 View
    Tube clamps 12mm $48.00 View
    Tube clamps 10/12mm $50.00 View
    Tube clamps 8mm $52.00 View
    Insulation 23mm ID $62.00 View
    Insulation for tubing 8/10mm ID $53.00 View
    Reinforced tubing 12mm ID $134.55 View
    Reinforced tubing 8mm ID $83.00 View
    CR-tubing 12mm ID $58.00 View
    CR tubing 10mm ID $48.00 View
    CR tubing 8mm ID $35.00 View
  • Networking & Software
    RS485 Interface $3,111.00 View
    RS232 interface cable 5m $234.00 View
    RS232 interface cable $219.00 View
  • Valves
    M16 Shut-off valve $221.00 View

VALEGRO 801H Videos

Connecting to EasyTEMP Software – RS232 – VALEGRO

In this video, Nelson Hill, Electronics Service Team Leader, demonstrates how to connect your VALEGRO recirculating chiller to EasyTEMP using the RS232 interface.

Connecting to EasyTEMP Software – USB-C – VALEGRO

In this video, Nelson Hill, Electronics Service Team Leader, demonstrates how to connect your VALEGRO recirculating chiller to EasyTEMP using the USB-C interface.
