DYNEO DD-1200F - JULABO USA

DYNEO DD-1200F

Refrigerated Circulators

Part Number: 9021717.N1

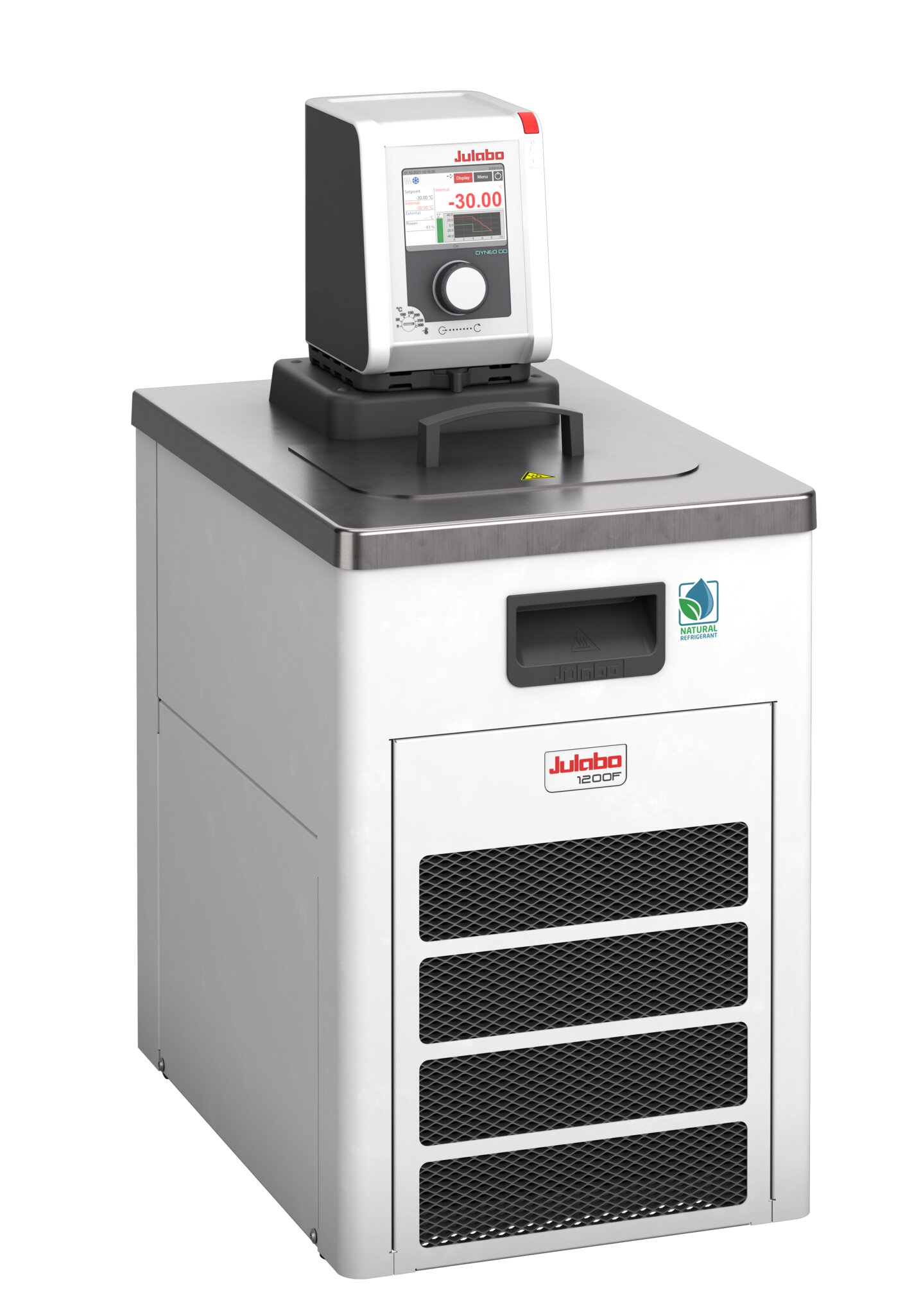

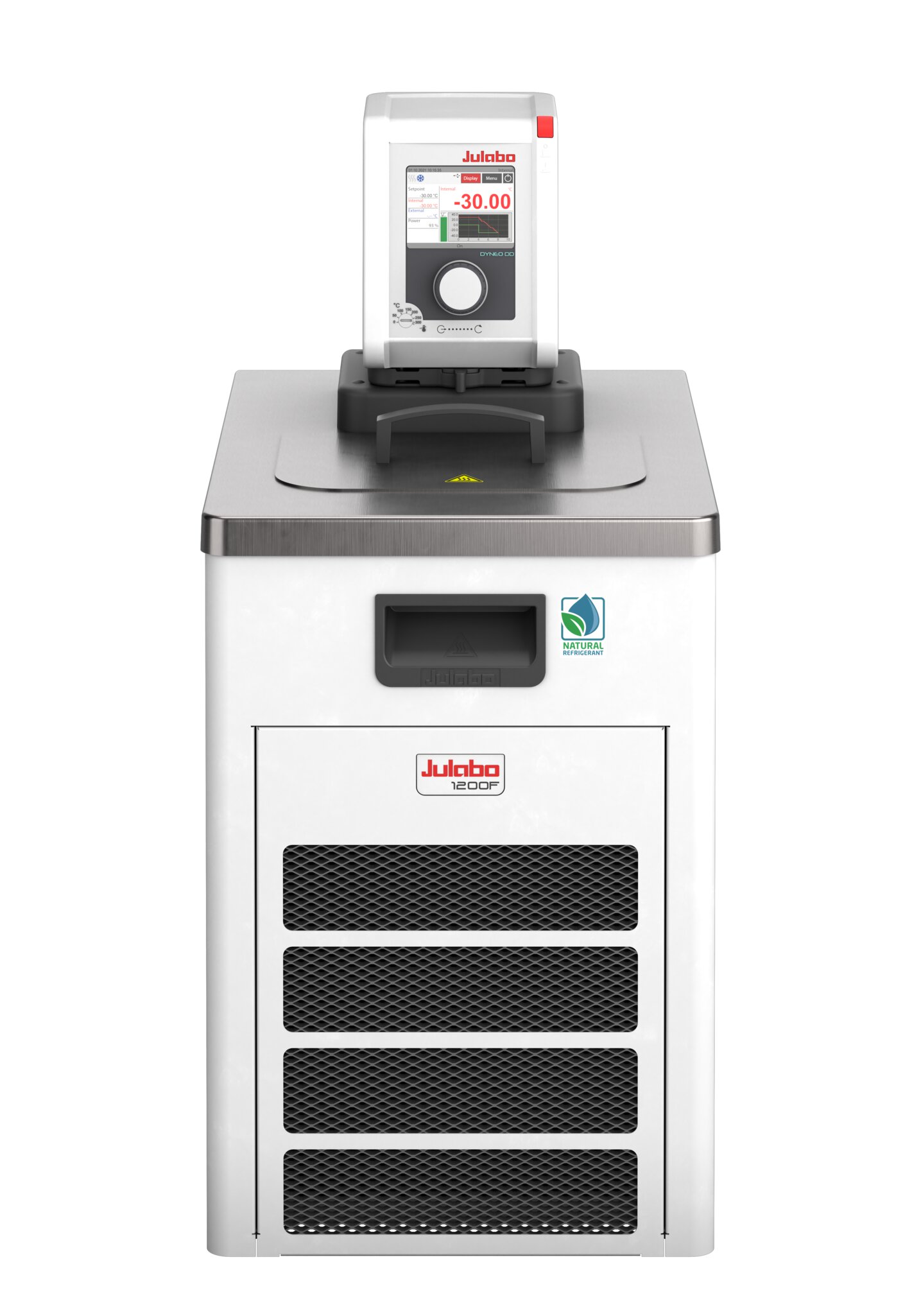

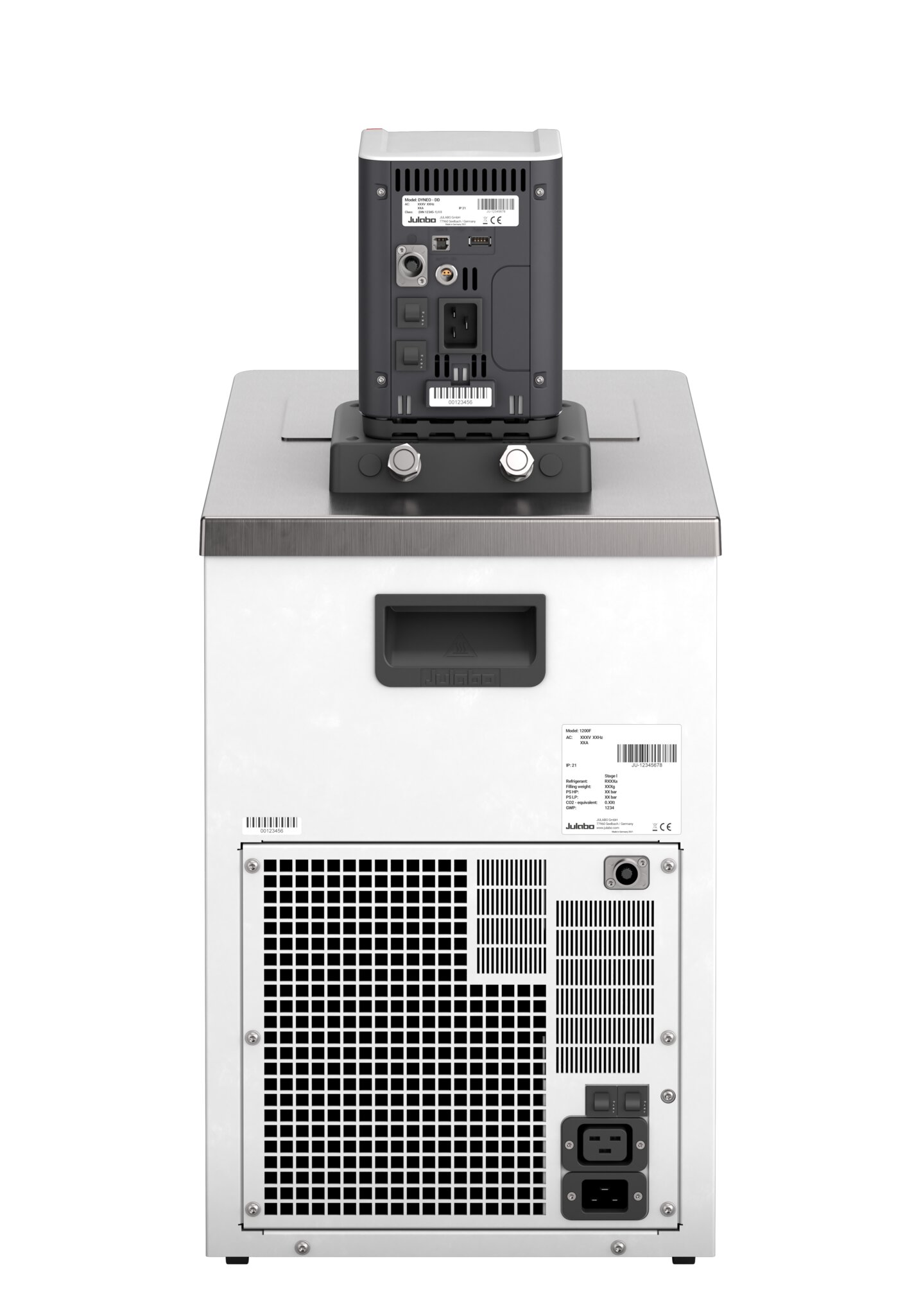

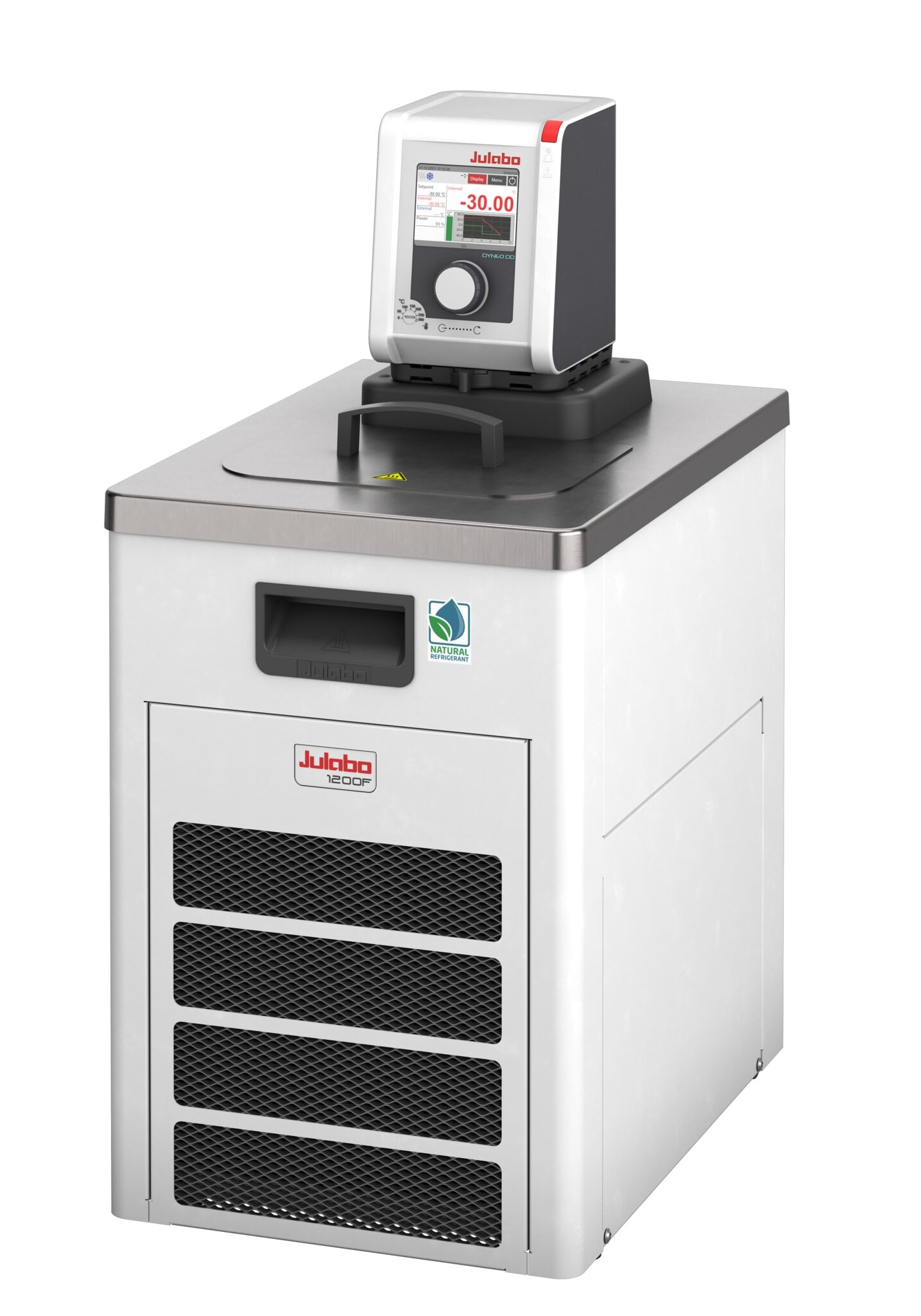

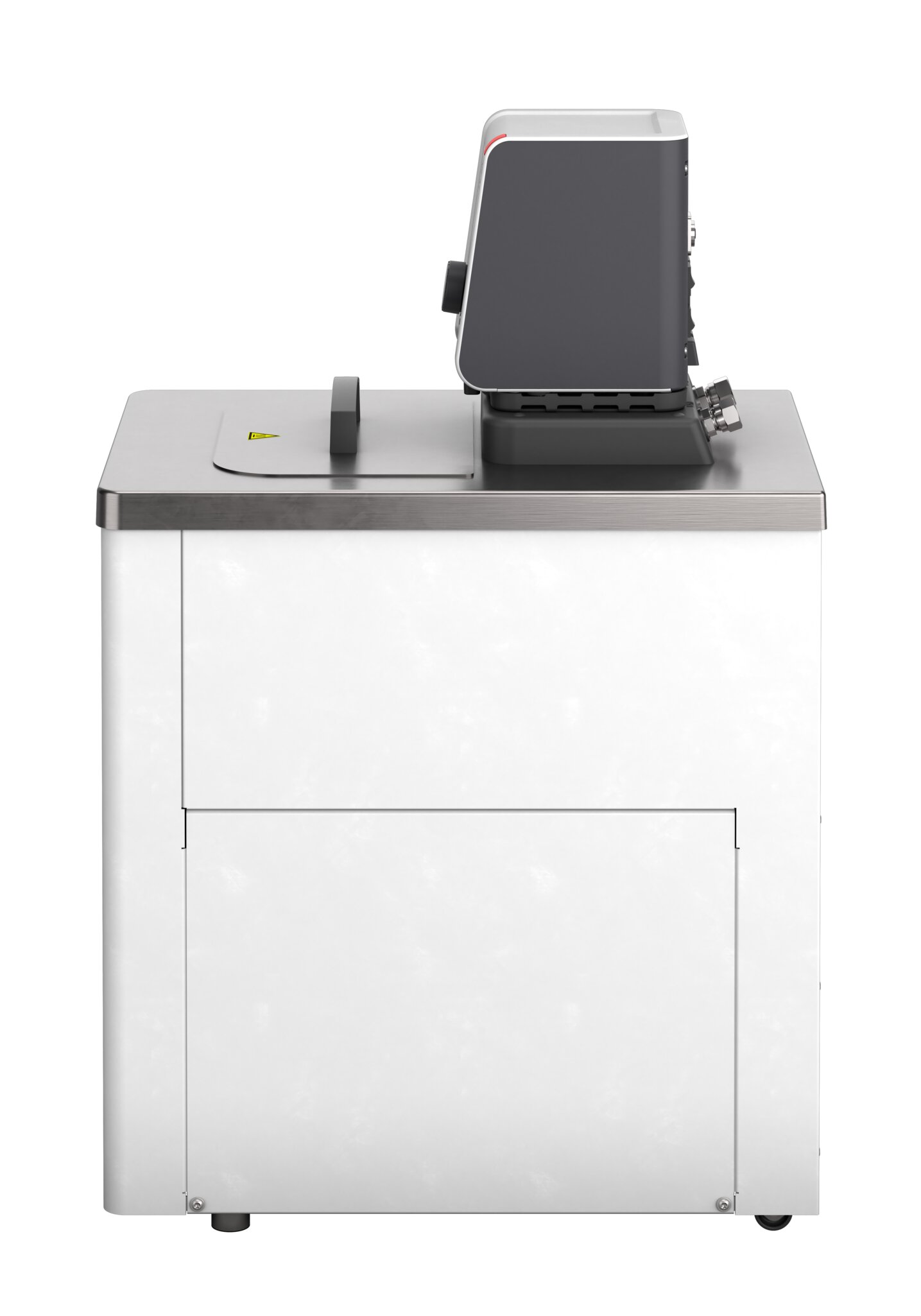

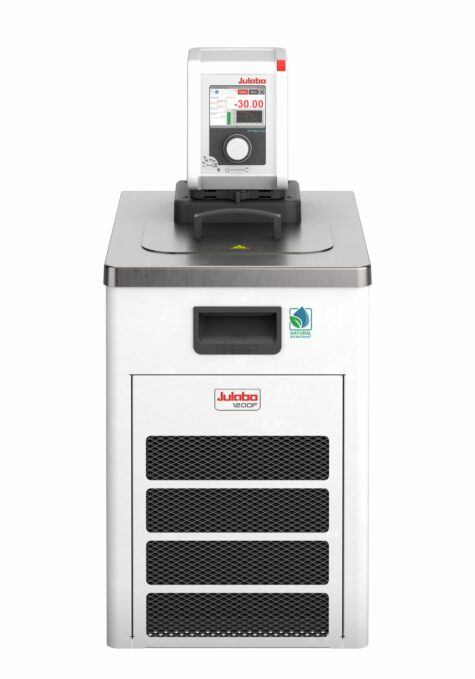

DYNEO DD-1200 Benchtop Refrigerated / heating circulator. Range -50…+200 °C with 1 or 2 kW heating power and 1.24 kW cooling power at 20 °C. Adjustable centrifugal pump with 8…27 L/min flow and 1.5…10.2 PSI with diverter valve to adjust internal / external flow ratio. USB Communication port with options to add Analog or RS232.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

$13,665.00 +

Quantity:
Part Number
9021717.N1.02
9021717.N1.02.A
9021717.N1.02.D
9021717.N1.33
9021717.N1.33.A
9021717.N1.33.D
Voltage Version
Heating & Cooling
Both
Both
Both
Both
Both
Both
Working Temp Range (°C)
-50...200
-50...200
-50...200
-50...200
-50...200
-50...200
PCF Pressure (psi)
8...27
8...27
8...27
8...27
8...27
8...27
PCF Rate (l/min)
1.5...10.2
1.5...10.2
1.5...10.2
1.5...10.2
1.5...10.2
1.5...10.2
$13,665.00
$14,370.00
$14,054.00
$13,665.00
$14,370.00
$14,054.00
Part Number
9021717.N1.02
9021717.N1.02.A
9021717.N1.02.D
9021717.N1.33
9021717.N1.33.A
9021717.N1.33.D
Working Temp Range (°C)
-50...200
-50...200
-50...200
-50...200
-50...200
-50...200
Heating Capacity (kW)
1
1
1
2
2
2
Cooling Capacity
°C -40-30-20020
kW 0.20.370.621.091.24
°C -40-30-20020
kW 0.20.370.621.091.24
°C -40-30-20020
kW 0.20.370.621.091.24
°C -40-30-20020
kW 0.20.370.621.091.24
°C -40-30-20020
kW 0.20.370.621.091.24
°C -40-30-20020
kW 0.20.370.621.091.24
Voltage Version
Power A
12A
12A
12A
11A
11A
11A
Plug Type
NEMA 6-20P
NEMA 6-20P
NEMA 6-20P
NEMA 6-20P
NEMA 6-20P
NEMA 6-20P
Pump Connection
M16x1 male
M16x1 male
M16x1 male
M16x1 male
M16x1 male
M16x1 male
PCF Pressure (psi)
8...27
8...27
8...27
8...27
8...27
8...27
PCF Rate (l/min)
1.5...10.2
1.5...10.2
1.5...10.2
1.5...10.2
1.5...10.2
1.5...10.2
Bath Fill Volume (L)
5...7.5
5...7.5
5...7.5
5...7.5
5...7.5
5...7.5
External Devices
Remote Control|Pt100
Remote Control|Pt100
Remote Control|Pt100
Remote Control|Pt100
Remote Control|Pt100
Remote Control|Pt100
Fluid Type
Water, Water/Glycol
Water, Water/Glycol
Water, Water/Glycol
Water, Water/Glycol
Water, Water/Glycol
Water, Water/Glycol
Heating & Cooling
Both
Both
Both
Both
Both
Both
Dimensions W x L x H (in)
13x18.5x27.6
13x18.5x27.6
13x18.5x27.6
13x18.5x27.6
13x18.5x27.6
13x18.5x27.6
Weight (lbs)
93
93
93
93
93
93
$13,665.00
$14,370.00
$14,054.00
$13,665.00
$14,370.00
$14,054.00

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

  • DYNEO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
  • A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer
  • Pt100 port for external temperature control
  • USB connection for external PC control and data-logging with digital options including RS232 port or an analog module interface for voltage or current control
  • PID temperature control provides ±0.01 °C stability
  • Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi
  • Stainless steel bath tank with integrated drain port
  • Class III (FL) according to DIN 12876-1
  • R1270 natural refrigerant with 85g charge. GWP = 2, Carbon dioxide equivalent = 0.00017 t
  • Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
  • Adapters
    Elbows M16x1 8891242 $333.00 View
    M16x1 m/m Adapter 8891243 $63.00 View
    Adapter 8891604 M16x1 f to NPT 1/4″ m $82.00 View
    Adapter 8891605 M16x1 f to NPT 1/4″ f $153.00 View
    Adapter 8891606 M16x1 f to NPT 3/8″ m $155.00 View
    Adapter 8891607 M16x1 f to NPT 3/8″ f $216.00 View
    Adapter 8891609 M16x1 f to NPT 1/2″ f $212.00 View
    Adapter 8891608 M16x1 f to NPT 1/2″ m $174.00 View
    Adapter 8891610 M16x1 m to NPT 1/4″ f $139.00 View
    M16 Nuts 8970490 $41.00 View
    8mm Barbed fittings 8970446 $44.00 View
    10mm Barbed fittings 8970447 $52.00 View
    Elbow fittings M16 8970448 $427.00 View
    M16 Twin adapter 8970473 $325.00 View
    12mm Barbed fittings 8970445 $44.00 View
    Adapter 8891008 M16x1 m to 1/2″ BSP f $198.00 View
    Adapter 8891009 M16x1 m to 3/4″ BSP f $236.00 View
    Adapter 8890024 M16x1 f to M 16×1 f $129.00 View
  • Bath Covers
    Condensation Trap with Bath Lid $2,150.00 View
    Lockable bath cover $1,712.00 View
    12L lid heat exchanger 9970242 $826.00 View
  • Bath Fluids
    Thermal C20S 5L $786.00 View
    Thermal C20S 10L $1,457.00 View
    Thermal EG 5L $224.00 View
    Thermal EG 10L $403.00 View
    Thermal C10 5L $1,382.00 View
    Thermal C10 10L $2,745.00 View
    Thermal C5 5L $921.00 View
    Thermal C5 10L $1,830.00 View
  • Hoses & Tubing
    Viton tubing 6mm ID $112.00 View
    Vacuum insulated metal tubing, 1m, M16x1f $728.00 View
    Vacuum insulated metal tubing, 1.5m, M16x1f $1,010.00 View
    Vacuum insulated metal tubing, 2m, M16x1f $1,268.00 View
    Vacuum insulated metal tubing, 3m, M16x1f $1,592.00 View
    CR tubing 6mm ID 8930006 $26.00 View
    Metal tubing 8930224 2m M16x1f $977.00 View
    Vacuum insulated metal tubing, 0.5m, M16x1f $559.00 View
    Icing protection/sleeve for pump connectors 8970750 $136.00 View
    Tube clamps 10/12mm 8970481 $37.00 View
    Tube clamps 8mm 8970480 $38.00 View
    Insulation 8930410 for tubing 8/10mm ID $39.00 View
    Insulation 8930412 for tubing 12mm ID $38.00 View
    Viton tubing 12mm ID 8930112 $190.00 View
    Silicone tubing 8mm ID 8930120 $68.00 View
    Silicone tubing 12mm ID 8930122 $73.00 View
    PTFE tubing 8mm ID 8930140 $165.00 View
    PTFE tubing 12mm ID 8930142 $207.00 View
    Metal tubing 8930220 0.5m M16x1f $406.00 View
    Metal tubing 8930221 1m M16x1f $509.00 View
    Metal tubing 8930222 1.5m M16x1f $631.00 View
    Metal tubing 8930223 3m M16x1f $1,162.00 View
    CR tubing 8mm ID 8930008 $26.00 View
    CR tubing 10mm ID 8930010 $36.00 View
    CR-tubing 12mm ID 8930012 $42.00 View
    Viton tubing 8mm ID 8930108 $143.00 View
    Viton tubing 10mm ID 8930110 $158.00 View
  • Networking & Software
    EtherCAT Interface $3,316.00 View
    ProfiNet Interface for JULABO devices with RS232 $3,316.00 View
    USB Cable 9900110 $41.00 View
    RS232 interface cable 8980073 $163.00 View
    RS232 interface cable 5m 8980074 $175.00 View
    Profibus DP Interface 8900020 $2,296.00 View
    RS485 Interface 8900024 $2,296.00 View
    USB to Serial RS-232 DB9 Adapter Cable 8900110 $204.00 View
    EasyTemp Professional’ control software 8901105 $2,246.00 View
  • Plugs
    Standby-plug 3 pole 8980133 $35.00 View
    Alarm plug 5 pole 8980135 $35.00 View
    REG EPROG-plug 6 pole 8980136 $35.00 View
  • Sensors
    18″ SS Pt100 sensor 8891035 $651.00 View
    18″ PTFE Pt100 sensor 8891036 $856.00 View
    ThermoCouple Converter Box $2,057.00 + View
    24″ SS Pt100 sensor 8891001 $779.00 View
    24″ PTFE Pt100 sensor 8891002 $863.00 View
    36″ SS Pt100 sensor 8891003 $860.00 View
    36″ PTFE Pt100 sensor 8891004 $1,112.00 View
    48″ SS Pt100 sensor 8891005 $1,110.00 View
    48″ PTFE Pt100 sensor 8891006 $1,239.00 View
    12″ SS Pt100 sensor 8891018 $522.00 View
    12″ PTFE Pt100 sensor 8891019 $849.00 View
    8″ SS Pt100 sensor 8891031 $493.00 View
    8″ PTFE Pt100 sensor 8891032 $802.00 View
    Pt100 Extension cable 8981103 $466.00 View
    20mm SS Pt100 sensor 8981006 $779.00 View
    M16 in-line Pt100 sensor 8981020 $863.00 View
  • Valves
    M16 Shut-off valve 8970457 $435.00 View
