MAGIO MS-800F - JULABO USA

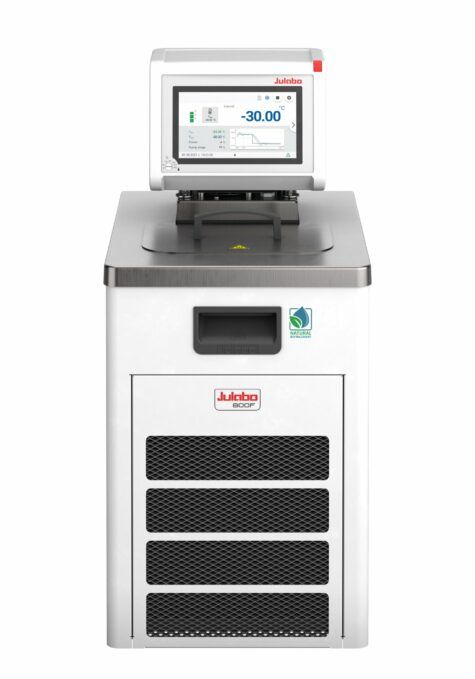

MAGIO MS-800F

Refrigerated Circulators

Part Number: 9032715.N1

MAGIO MS-800F Benchtop Refrigerated / heating circulator. Range -40…+200 °C with 1 or 2 kW heating power and 860 W cooling power at 20 °C. Adjustable pressure/suction centrifugal pump with 16…31 L/min flow and 3.5…13.3 PSI pressure. USB, Ethernet, RS232/RS485 Communication ports with option to add Analog module.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

$15,854.00 +

Quantity:
Part Number
9032715.N1.02
9032715.N1.33
Voltage Version
Heating & Cooling
Both
Both
Working Temp Range (°C)
-40...200
-40...200
PCF Pressure (psi)
16...31
16...31
PCF Rate (l/min)
3.5...13.3
3.5...13.3
$15,854.00
$15,854.00
Part Number
9032715.N1.02
9032715.N1.33
Working Temp Range (°C)
-40...200
-40...200
Heating Capacity (kW)
1
2
Cooling Capacity
°C -40-30-20020
kW 0.120.260.410.760.86
°C -40-30-20020
kW 0.120.260.410.760.86
Voltage Version
Power A
12A
11A
Plug Type
NEMA 5-20P
NEMA 6-20P
Pump Connection
M16x1 male
M16x1 male
PCF Pressure (psi)
16...31
16...31
PCF Rate (l/min)
3.5...13.3
3.5...13.3
Bath Fill Volume (L)
5...7.5
5...7.5
External Devices
Remote Control|Pt100
Remote Control|Pt100
Fluid Type
Water, Water/Glycol
Water, Water/Glycol
Heating & Cooling
Both
Both
Dimensions W x L x H (in)
13x18.5x27.6
13x18.5x27.6
Weight (lbs)
93
93
$15,854.00
$15,854.00

Out of stock

Out of stock

Out of stock

Out of stock

  • MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
  • Easy operation via a large color TFT touchscreen
  • Multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging (Modbus TCP/IP incorporated)
  • Stakei port for external accessory control (solenoid valve, etc.)
  • PID temperature control provides ±0.01 °C stability
  • Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi
  • Stainless steel bath tank with integrated drain port
  • 115V version with 1 kW heating power; 230V version with 2 kW heating power.
  • Class III (FL) according to DIN 12876-1. R1270 natural refrigerant with 85g charge. GWP = 2, Carbon dioxide equivalent = 0.00017 t
  • Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
