PURA 22 - JULABO USA

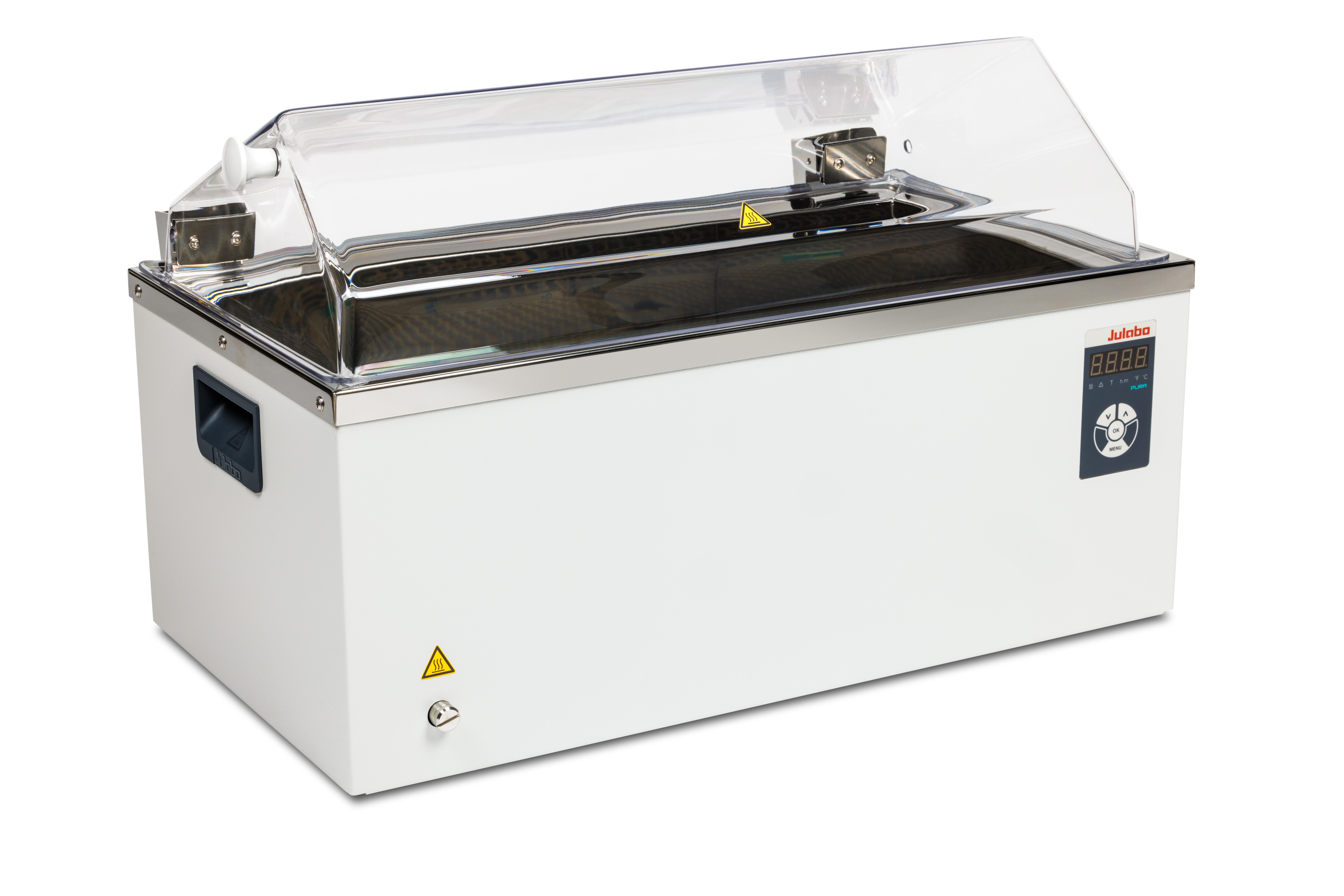

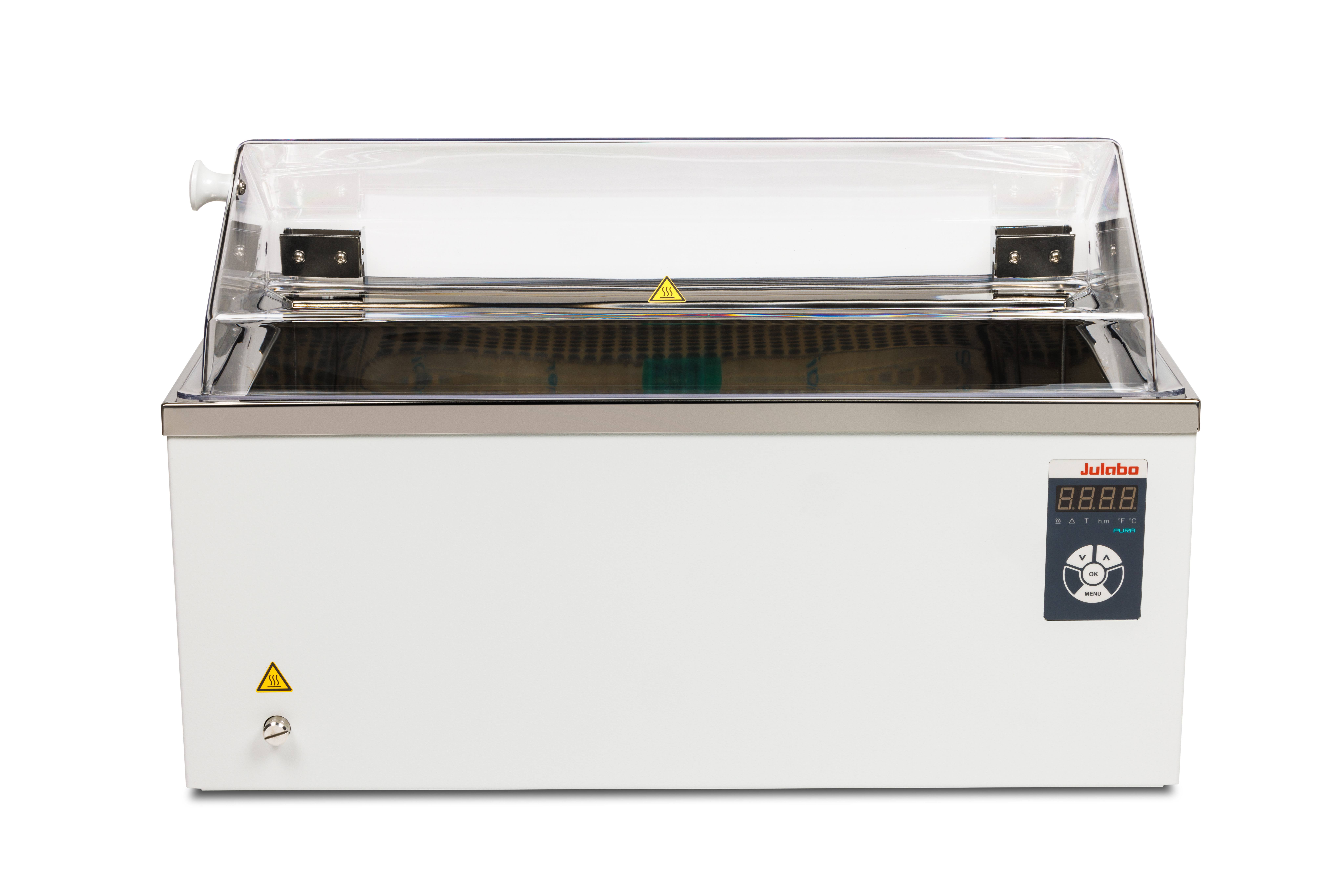

PURA 22

Water Baths

Part Number: 9550522

PURA water baths stand for a straightforward and safe working in the laboratory. The high-quality water baths offer a temperature stability of ± 0.15°C 2). The working temperature range of +18°C to 99.9°C 1) allows a wide range of applications, such as routine laboratory work, temperature applications for samples, incubation, material testing, corrosion testing, temperature control applications of cultures as well as temperature tests of food and beverages and in the dental field.
All models (except PURA 4) come with an integrated drain screw for quick and clean draining of the baths. PURA water baths can be used flexibly and can be easily transported through ergonomic side recessed grips. Non-slip rubber feet ensure a firm footing and more safety in the laboratory.
The units are splash-proof, feature a (membrane) keypad and temperature display (LED) for ease of use. Operation in °F or °C with integrated timer. There are no disturbing parts inside the bath so that the entire inner surface can be used to safely temperature-control even small sample containers.
1) with counter-cooling/bath cover
2) with bath cover

$1,611.00 +

Quantity:
Part Number
9550522.22
9550522.33
9550522.22.CSA/UL
9550522.22.LID
9550522.22.CSA/UL.LID
9550522.33.LID
Voltage Version
100V-115V/60Hz
230V/50-60Hz
100V-115V/60Hz
100V-115V/60Hz
100V-115V/60Hz
230V/50-60Hz
NRTL
No
No
Yes
No
Yes
No
Heating & Cooling
Heating
Heating
Heating
Heating
Heating
Heating
Working Temp Range (°C)
18...99
18...99
18...99
18...99
18...99
18...99
PCF Pressure (psi)
PCF Rate (l/min)
$1,611.00
$1,611.00
$2,411.00
$1,611.00
$2,411.00
$1,611.00
Part Number
9550522.22
9550522.33
9550522.22.CSA/UL
9550522.22.LID
9550522.22.CSA/UL.LID
9550522.33.LID
Working Temp Range (°C)
18...99
18...99
18...99
18...99
18...99
18...99
Heating Capacity (kW)
1.3
2
1.3
1.3
1.3
2
Cooling Capacity
Voltage Version
100V-115V/60Hz
230V/50-60Hz
100V-115V/60Hz
100V-115V/60Hz
100V-115V/60Hz
230V/50-60Hz
Power A
12A
9A
12A
12A
12A
9A
Plug Type
NEMA 5-15P
NEMA 5-15P
NEMA 6-20P
Pump Connection
NRTL
No
No
Yes
No
Yes
No
PCF Pressure (psi)
PCF Rate (l/min)
Bath Fill Volume (L)
3.4…25.5
3.4…25.5
3.4…25.5
3.4…25.5
3.4…25.5
3.4…25.5
External Devices
Fluid Type
Water
Water
Water
Water
Water
Water
Heating & Cooling
Heating
Heating
Heating
Heating
Heating
Heating
Dimensions W x L x H (in)
25.2 x 13.8 x 10.2
25.2 x 13.8 x 10.2
25.2 x 13.8 x 10.2
25.2 x 13.8 x 10.2
25.2 x 13.8 x 10.2
25.2 x 13.8 x 10.2
Weight (lbs)
25.4
25.4
25.4
27
27
27
$1,611.00
$1,611.00
$2,411.00
$1,611.00
$2,411.00
$1,611.00
  • Ease of use
  • Bright display
  • Splash-proof protected mains switch
  • Built-in dry running protection
  • No disturbing elements in the bath
  • Platform included as standard
  • Integrated timer
  • Non-slip rubber feet
  • Ergonomic recessed grips
  • Integrated drain screw
  • Bath Covers
    PURA 22 Flat bath cover 8 openings $747.00 View
    PURA 22 Flat bath cover 6 openings $617.00 View
    PURA 22 Flat bath cover 2 openings $420.00 View
    Lift-up bath cover PURA 22 $447.00 View
    Hollow balls – 8891027 $221.00 View
  • Bath Fluids
    Descaling Agent 9940200 $62.00 View
  • Cooling Coils
    PURA 22/30 Cooling coil 9970536 $441.00 View
    Liquid level/cooling set 8970415 $459.00 View
  • Test Tube Racks
    Test tube rack for 60 tubes 100 x 16/17 mm dia. 9970300 $113.00 View
    Test tube rack for 90 tubes 75 x 12/13 mm dia. 9970301 $113.00 View
    Test tube rack for 21 tubes 30 mm dia. 9970303 $113.00 View
  • Valves
    Bath Drain tap 8970453 $194.00 View
